AMERICAN ELECTRIC POWER'S

WINFIELD HYDROELECTRIC PLANT
3 UNITS

21MW 6 BAYS EACH 20 FEET WIDE X 35 FEET DEEP - VERTICAL TRASHRACKS -
>>HOME<<

6 - 20 FOOT WIDE DRAGRAKES

!!!! NEW DESIGN FOR VERTICAL TRASHRACKS !!!!

PICTURES TAKE TIME TO LOAD-PLEASE SCROLL DOWN !!!!!!

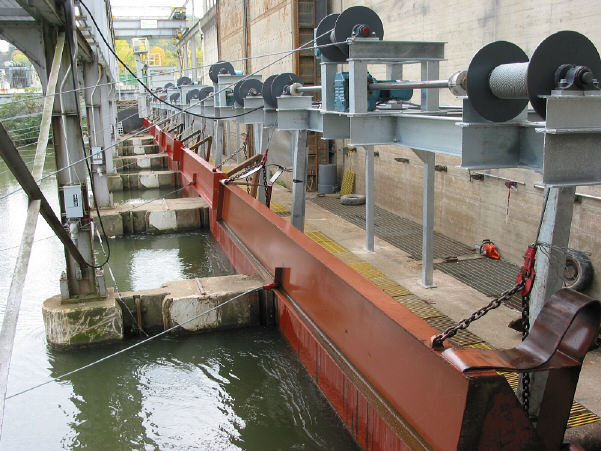

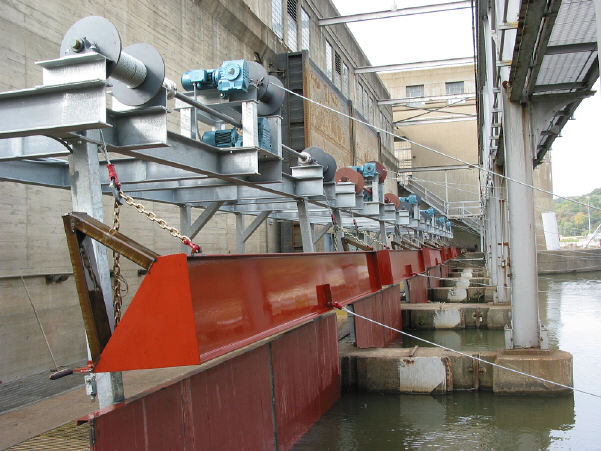

6 - 20 FEET WIDE FULLY AUTOMATIC DRAGRAKES ON VERTICAL INTAKES

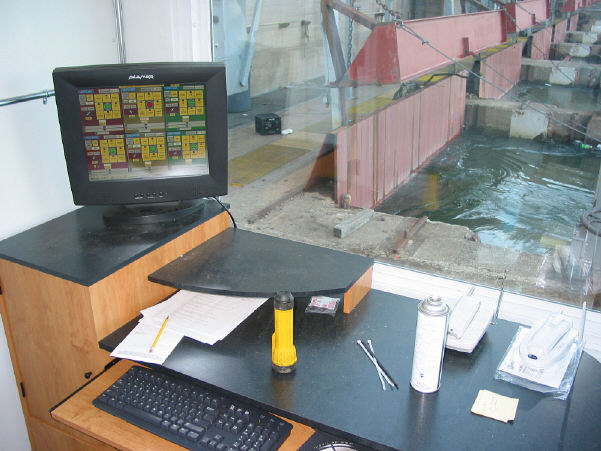

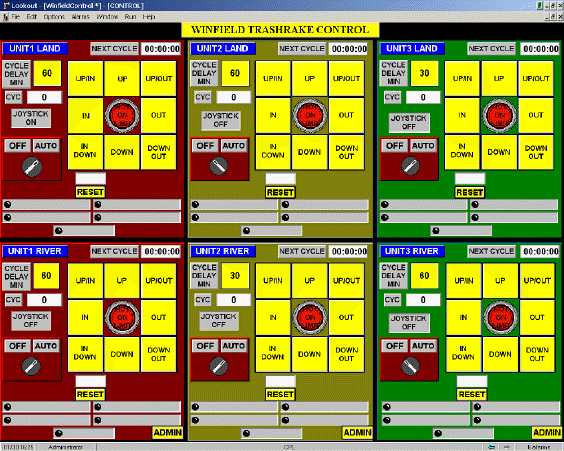

 REAL-TIME WEB MONITORING AND CONTROL VIA PAN/TILT/ZOOM CAMERA AND LOOKOUT HMI

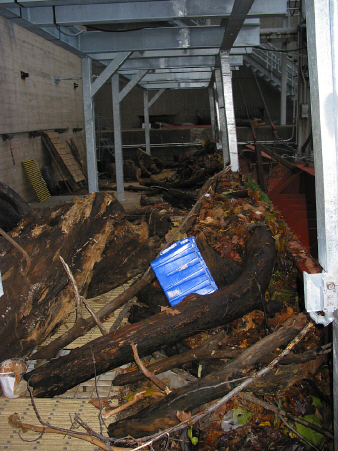

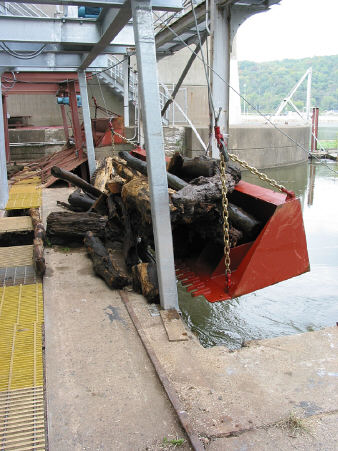

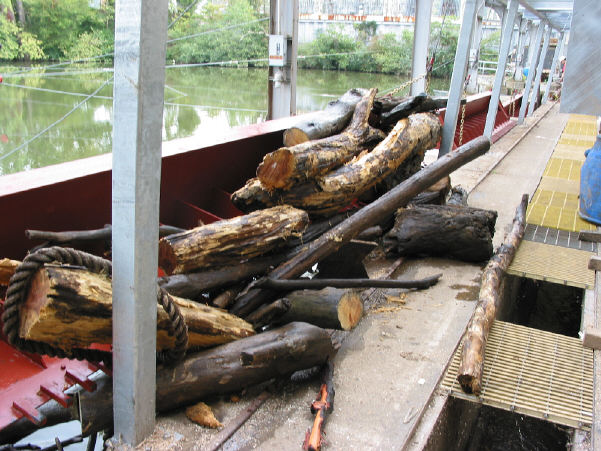

LOTS OF LOGS !

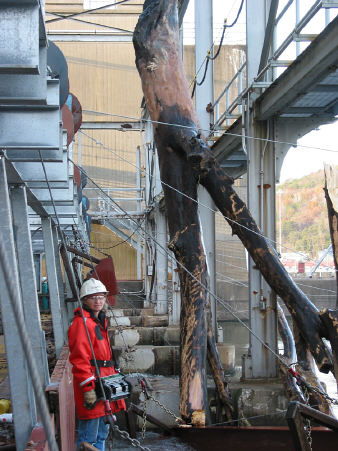

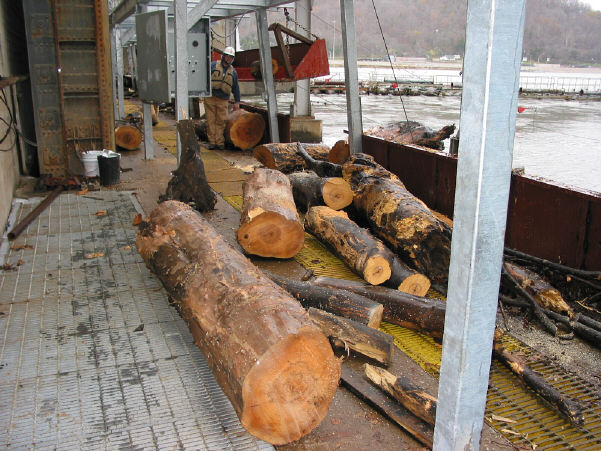

HUGE TREES ! MORE LOGS LEAVES

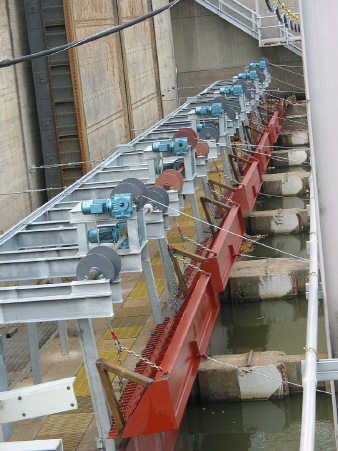

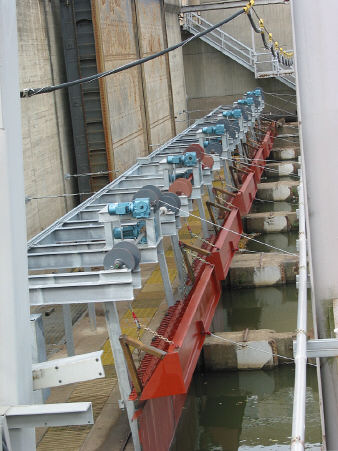

OVERHEAD

VIEW

HEAT / AC

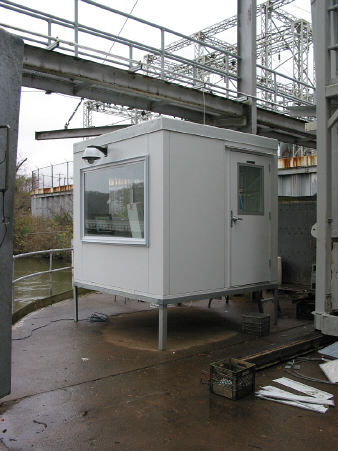

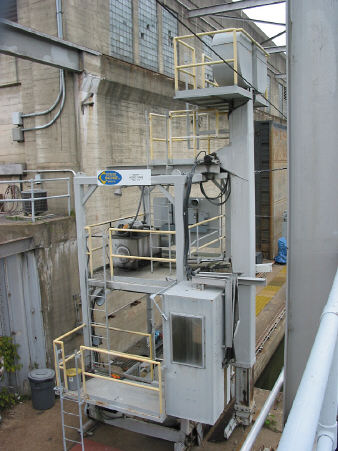

CONTROL BOOTH

WITH WEB CAMERA

RAKE REPLACED

BY THE DRAGRAKES
