 1500 KW STEAM GENERATOR |
2500 KW STEAM GENERATOR |
NORTH CAROLINA FINISHING STEAM PLANT
KANNAPOLIS ENERGY PARTNERS, LLC
|
2 600PSI STEAM TURBINE GENERATORS ELECTRICAL DISTRIBUTION AND CONTROL |
NORTH FORK ELECTRIC INC. PROVIDED THE DESIGN AND INSTALLATION OF THE ELECTRICAL CONTROLS AND POWER SWITCHGEAR.

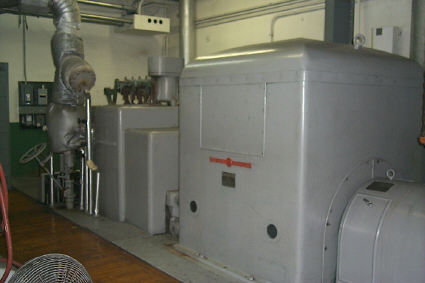

1500 KW STEAM GENERATOR |
2500 KW STEAM GENERATOR |
|

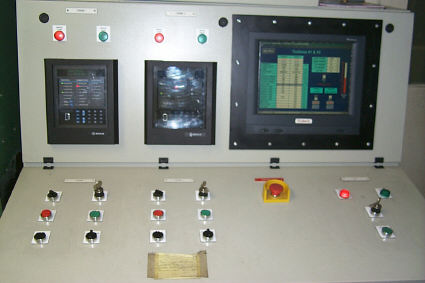

CONSOLE CONTROL CENTER |

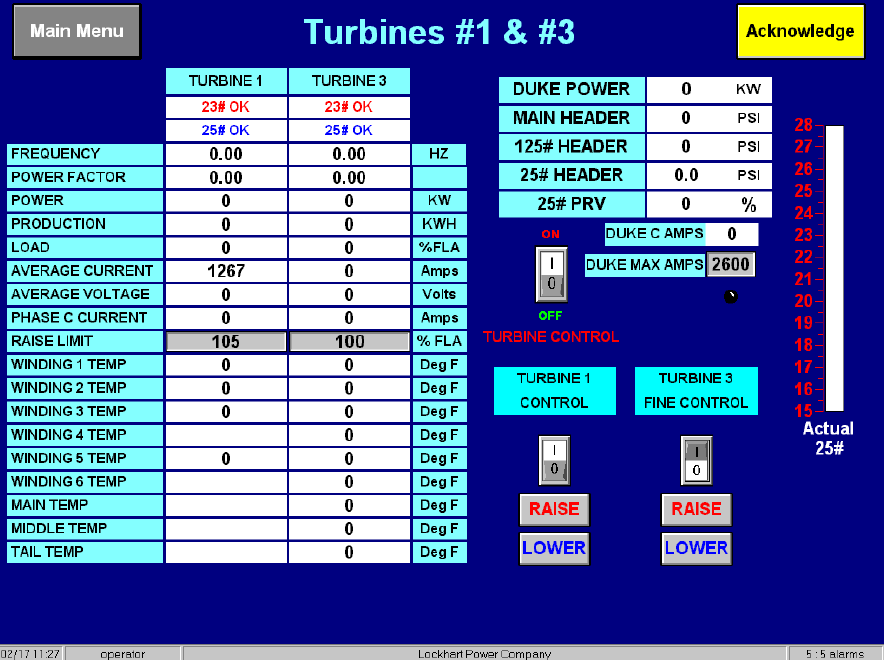

NON PLC/PC MANUAL CONTROL COMPUTER TOUCH SCREEN CONTROL |
 GE SR-489 GENERATOR PROTECTION RELAYS |
 SYNC / POWER METERS NON-PC BASED ANNUNCIATION |
AUTO-SYNC / VAR PF CONTROL |

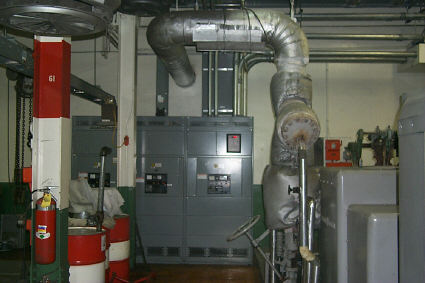

GENERATOR / PARASITIC LOAD SWITCHGEAR |
GENERATOR STATIC EXCITATION |
RIVER PUMP CONTROLS |
|
|
|
|
|
|
RIVER PUMP STATION PLC |
RIVER PUMP CONTROLS |

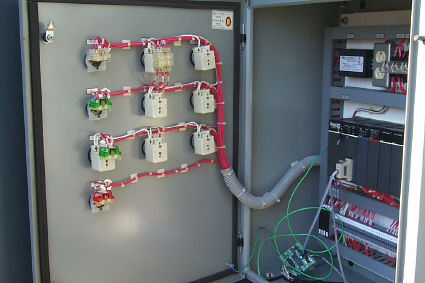

CONTROL ENCLOSURE |
|

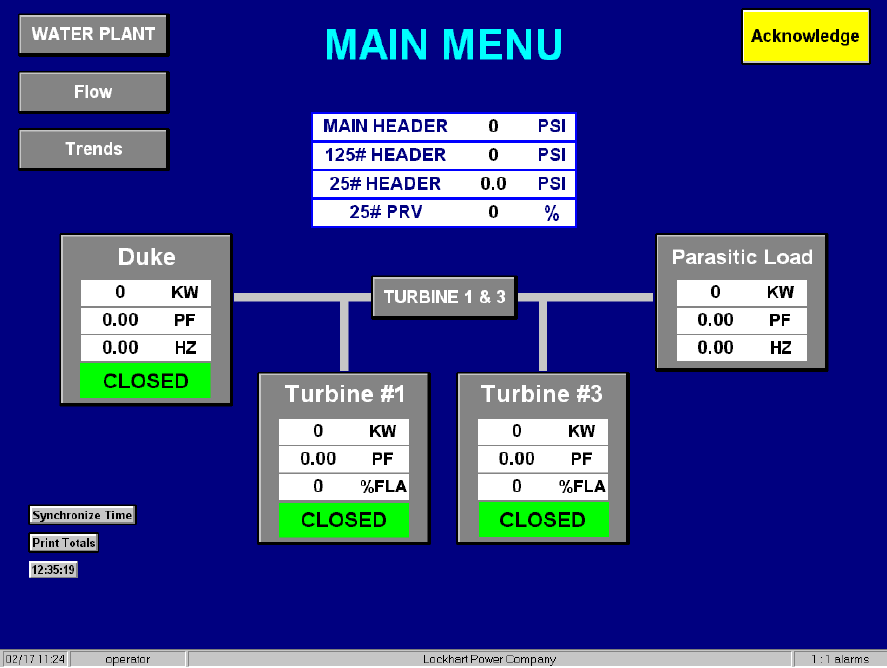

REMOTE LOOKOUT HMI CONTROL SCREEN |
