LOCKHART HYDRO ELECTRICAL / CONTROLS RENOVATION 2015-2016

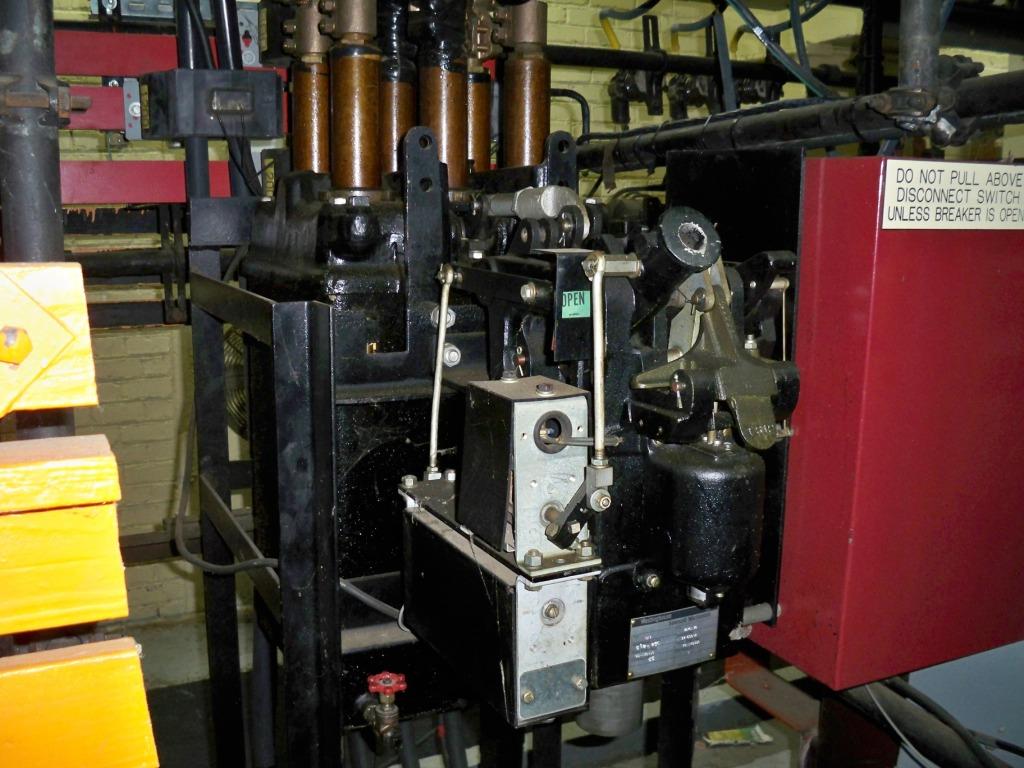

  • Removed 1920's Open Bus 5KV Switchgear

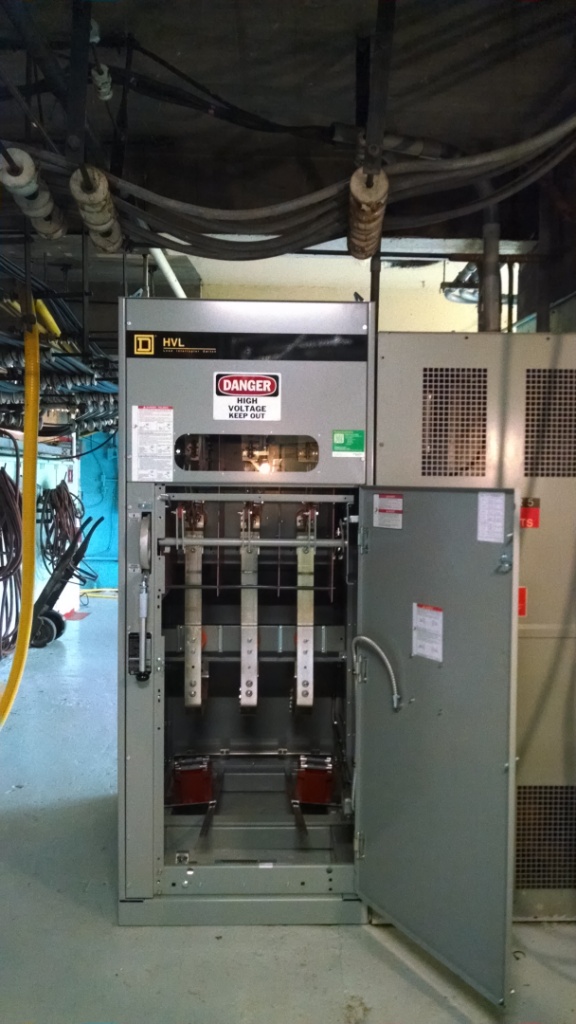

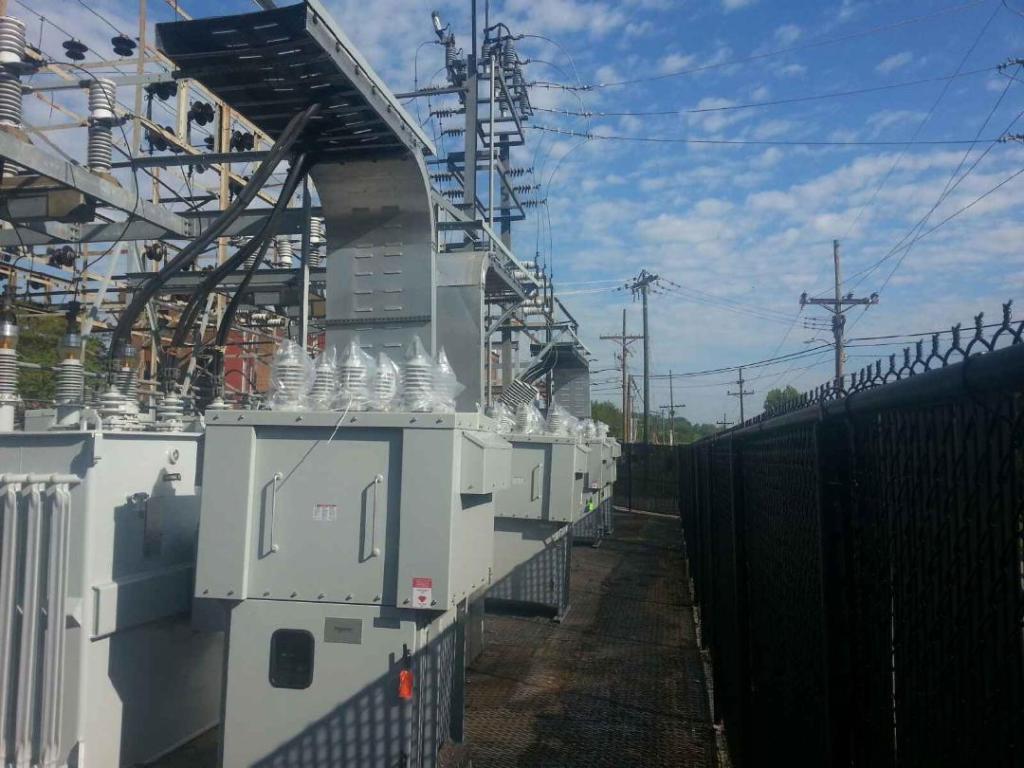

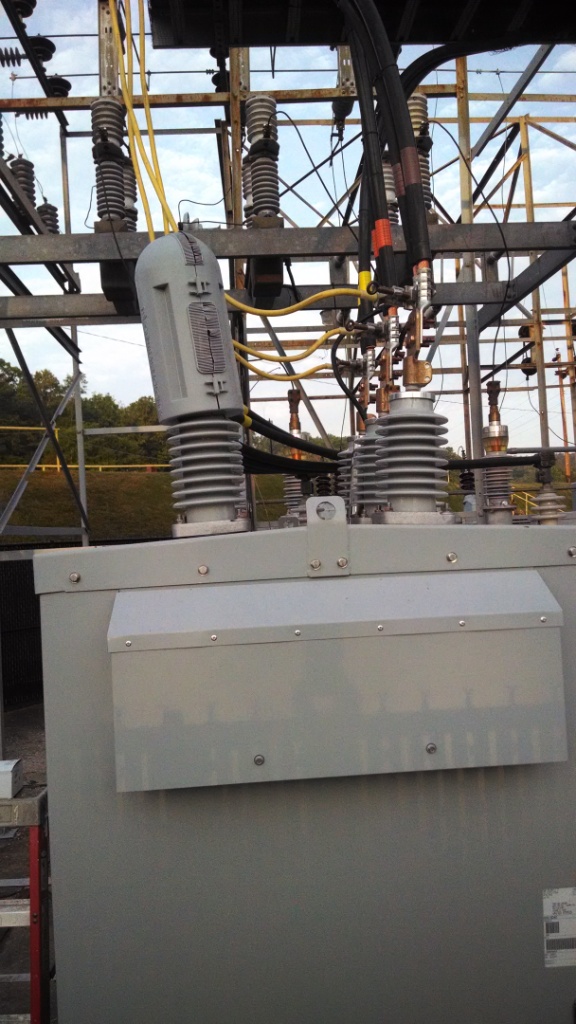

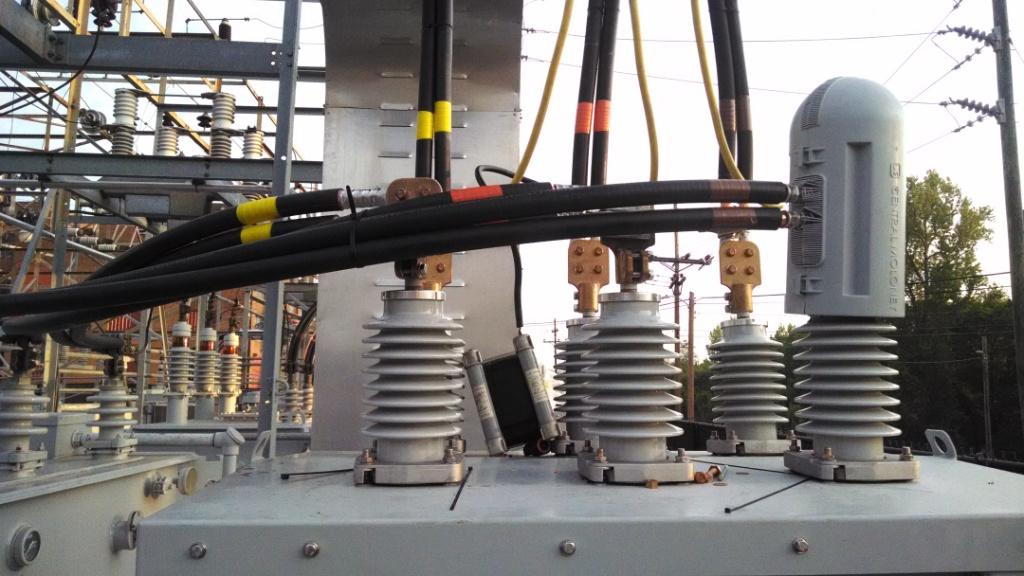

  •  Install New Substation Breakers. New MV Wiring

  •  New PLCs / SCADA Systems

  •  Basler Exciter Retrofit with NFEI PLC Controls





North Fork Electric Inc. provided a complete turn-key fully redundant hardwired/PLC/PC control system for Lockhart Power Company's hydroelectric facility.

http://www.lockhartpower.com

http://www.automationdirect.com

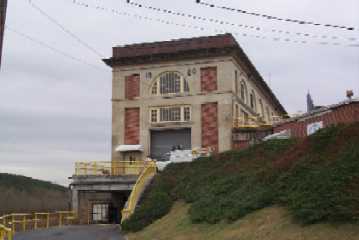

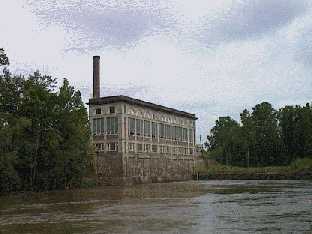

LOCKHART POWER 17MW HYDRO PLANT

NORTH FORK ELECTRIC INC. DESIGNED AND INSTALLED NEW CANAL GATE OPERATORS FOR LOCKHART POWER. THE NEW OPERATORS CONSIST OF 8 FOOT STROKE 35-TON SCREW JACKS WITH VARIABLE SPEED DRIVES.

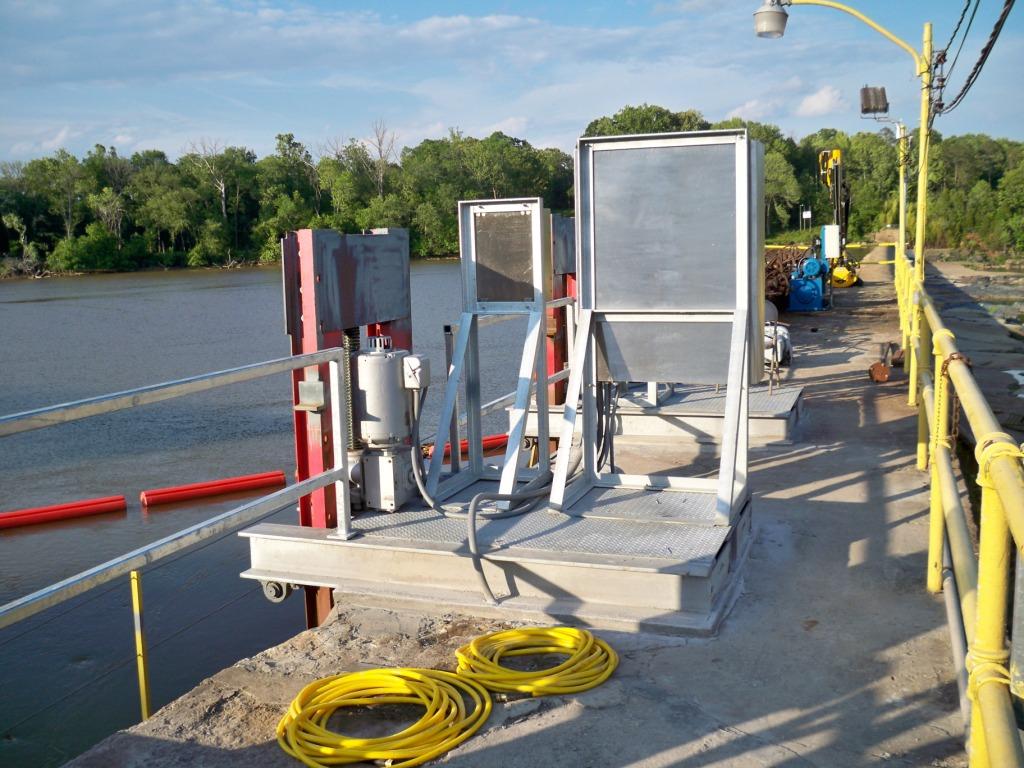

1920 RACK AND PINION OPERATORS                    NEW SCREWJACK OPERATORS





                 GALVANIZED SUPPORT FRAME                   VARIABLE FREQUENCY DRIVE WITH BYPASS

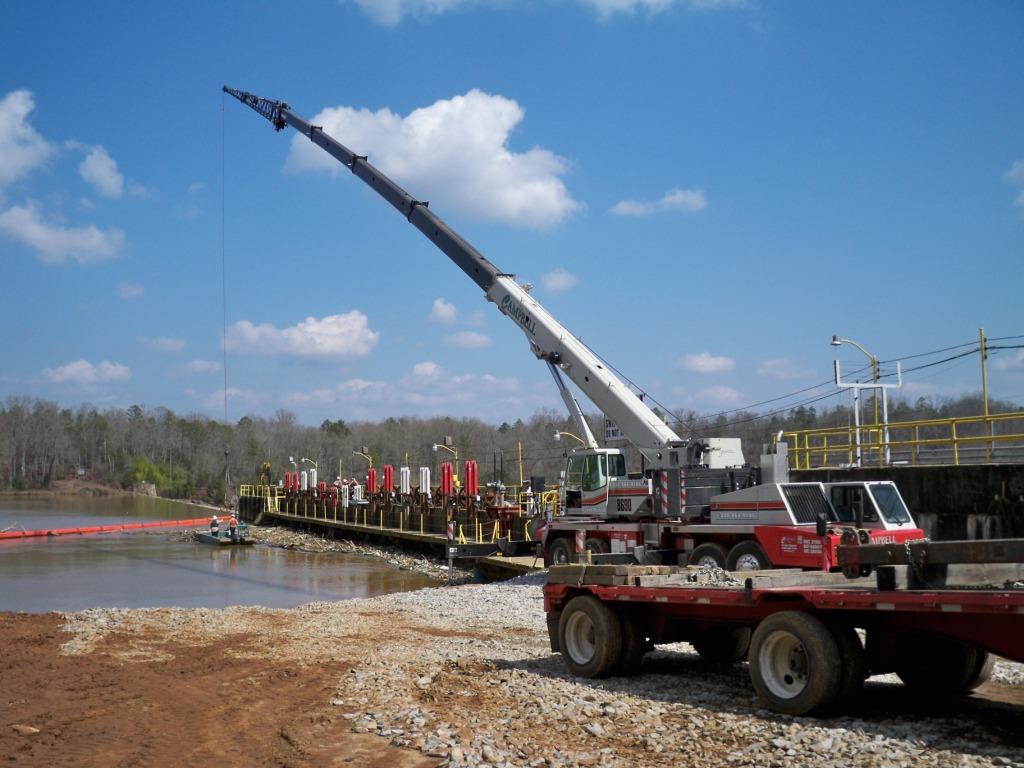

INSTALLATION

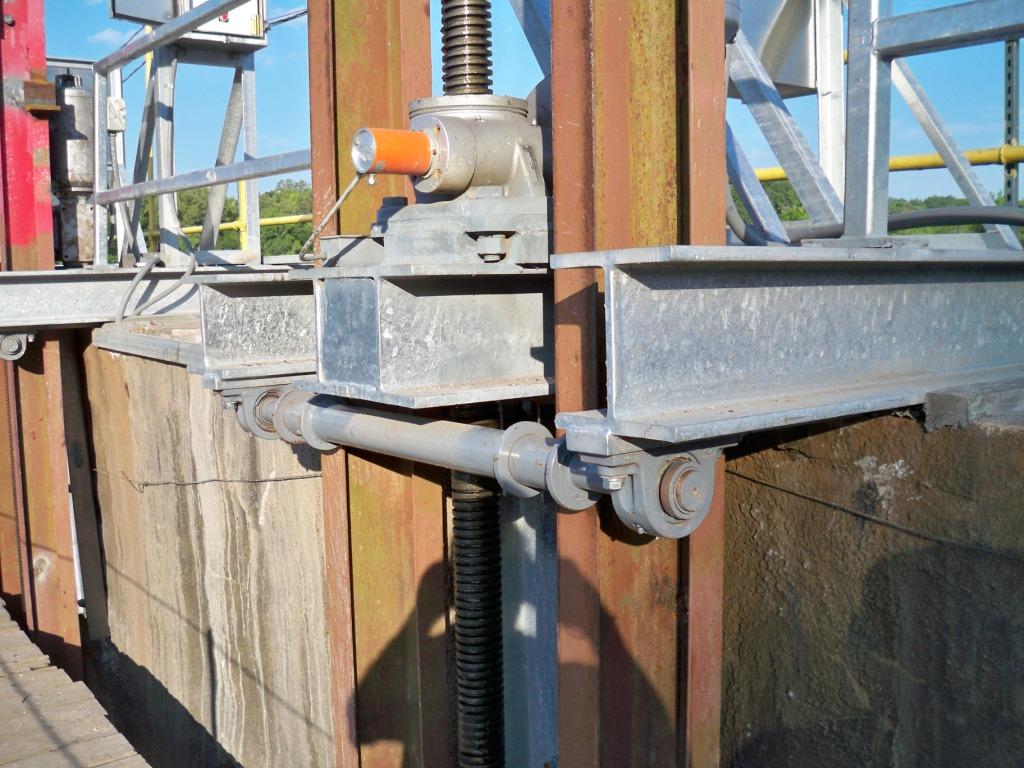

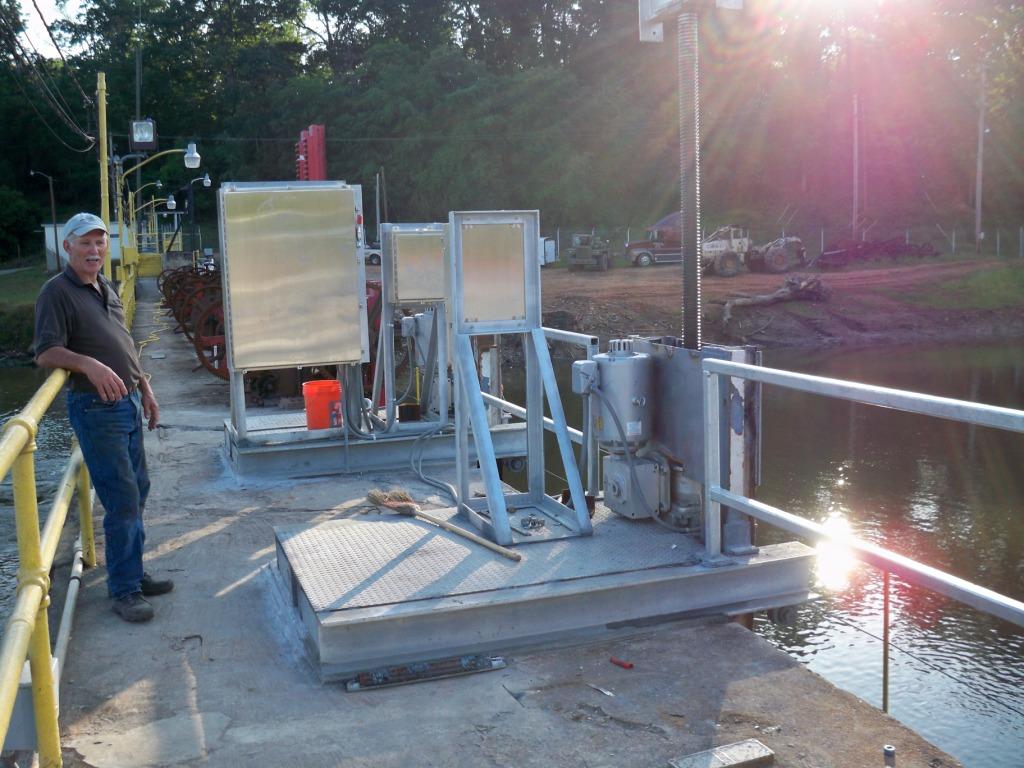

35 TON STAINLESS SCREW JACKS                                     CONTROL PANELS

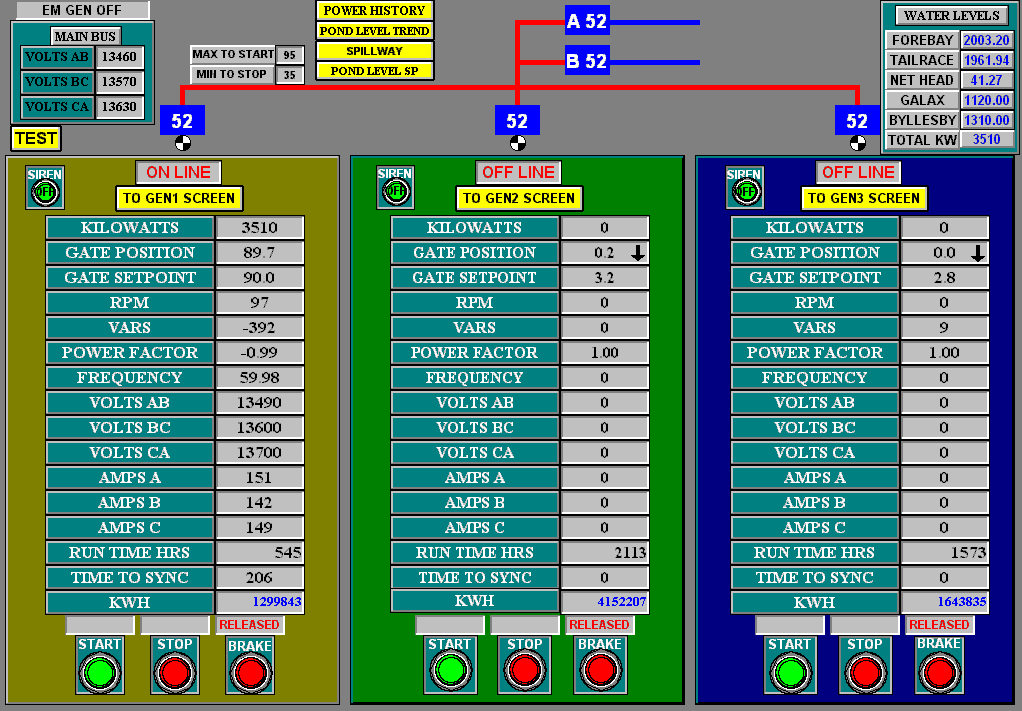

MAIN CONTROL SCREEN

HARDWIRED RELAY LOGIC

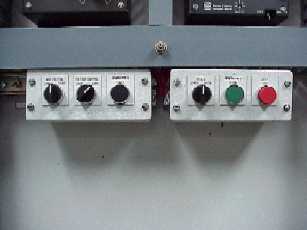

MANUAL OPERATOR INTERFACE

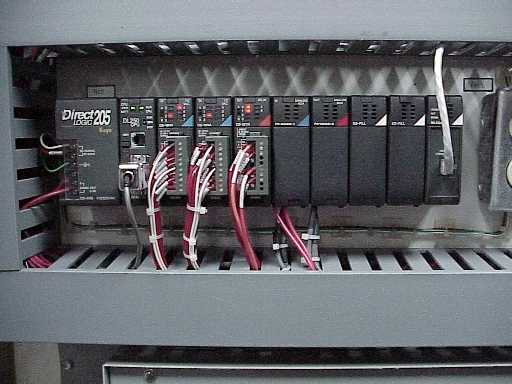

FULLY INDEPENDENT AUTOMATIONDIRECT™ 205 PLC CONTROL

PLC LEVEL OPERATOR INTERFACE DIRECTTOUCH™ PANEL
