SETTING THRUST SHOE PIVOT BOLTS |

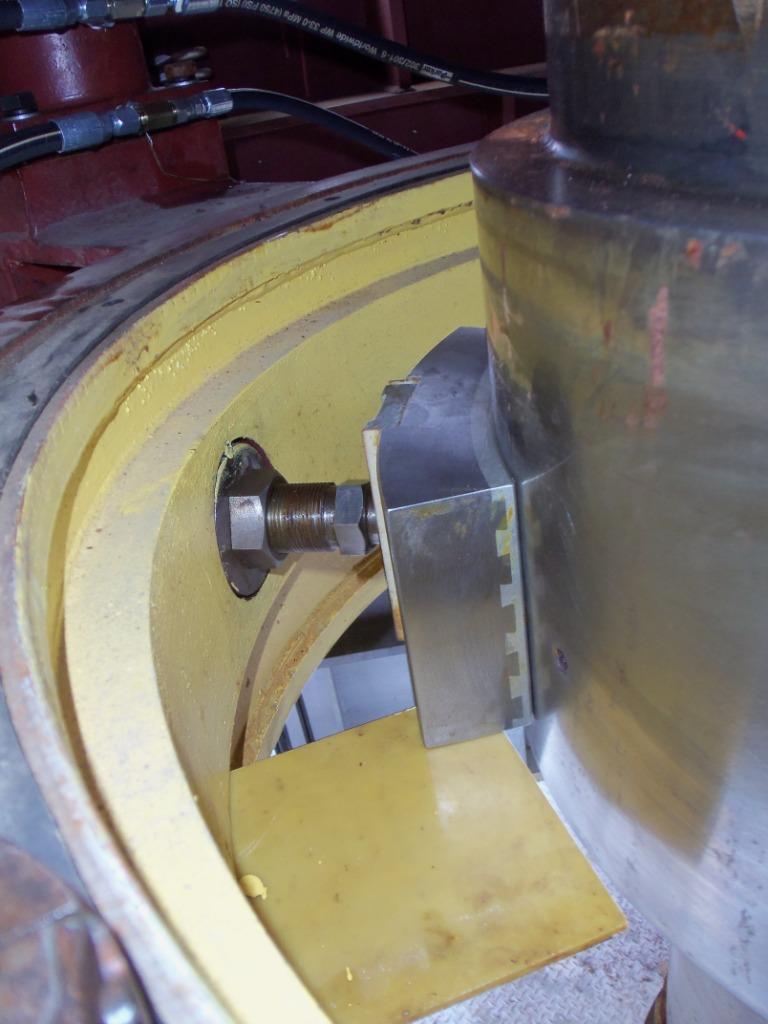

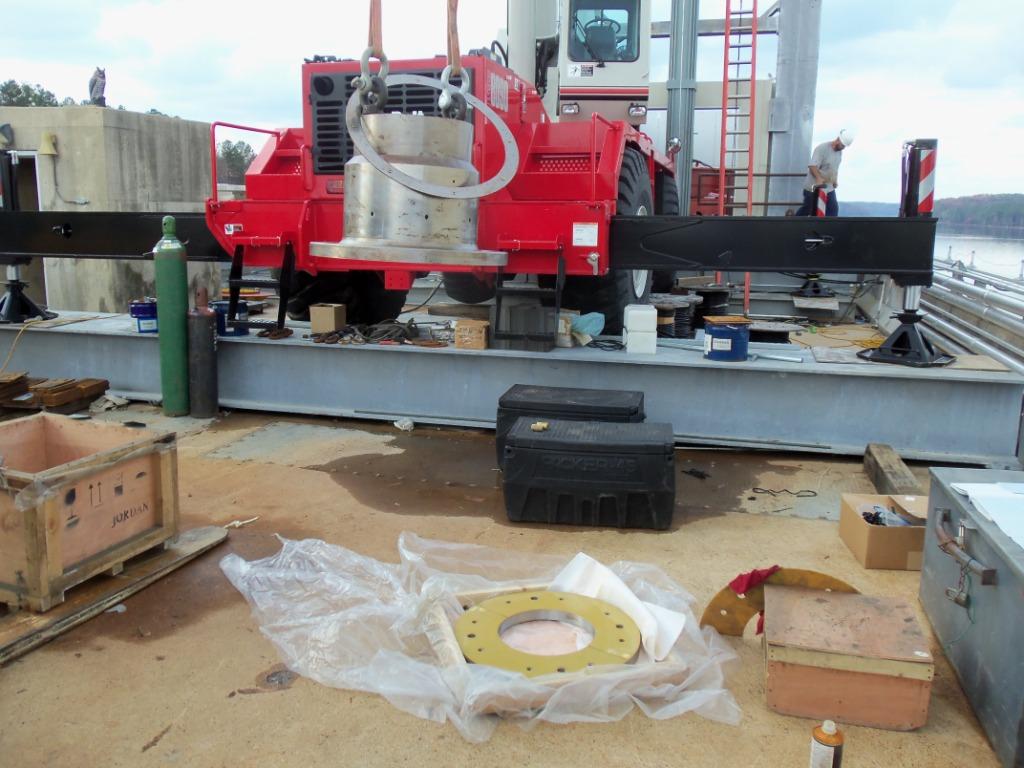

THRUST RUNNER / INSULATING DISK / THRUST RACE |
|

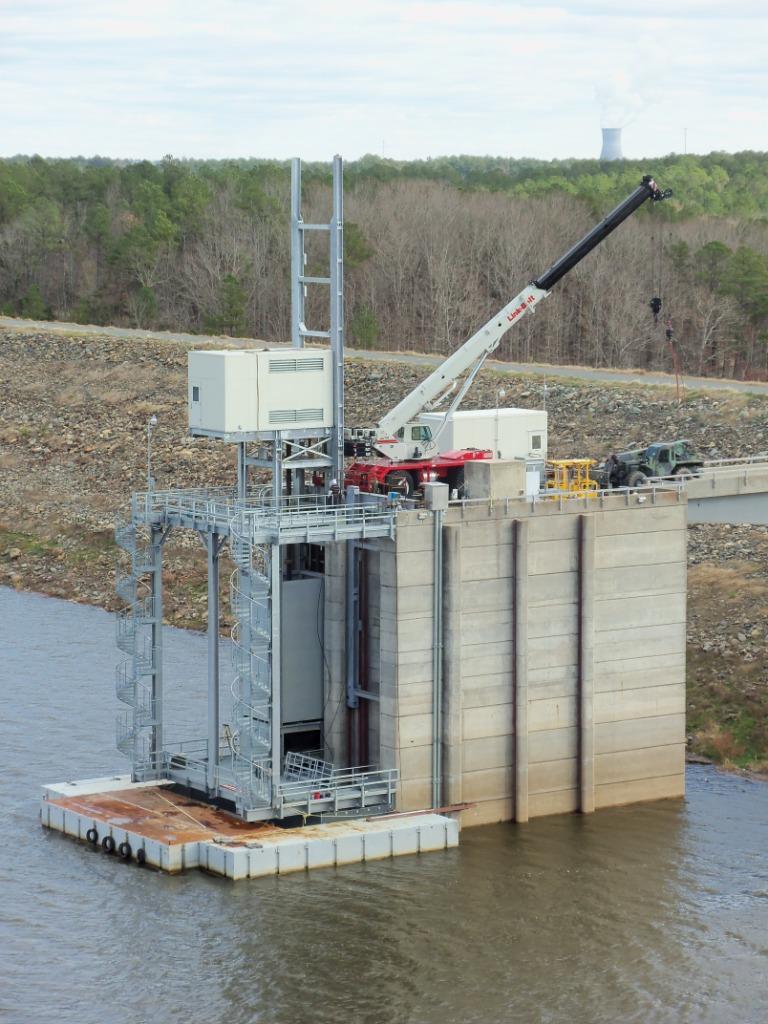

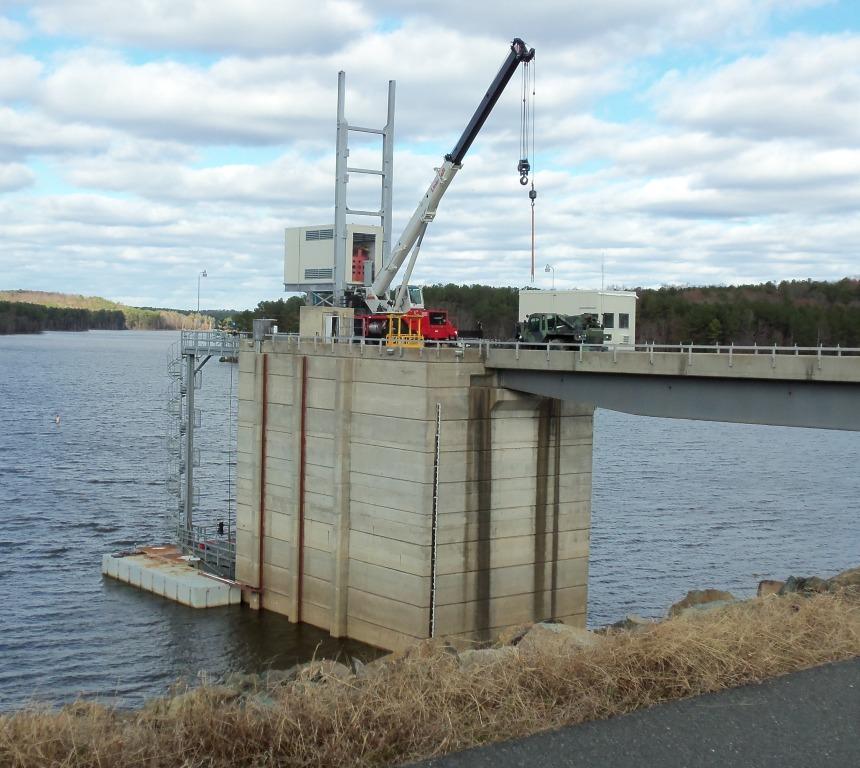

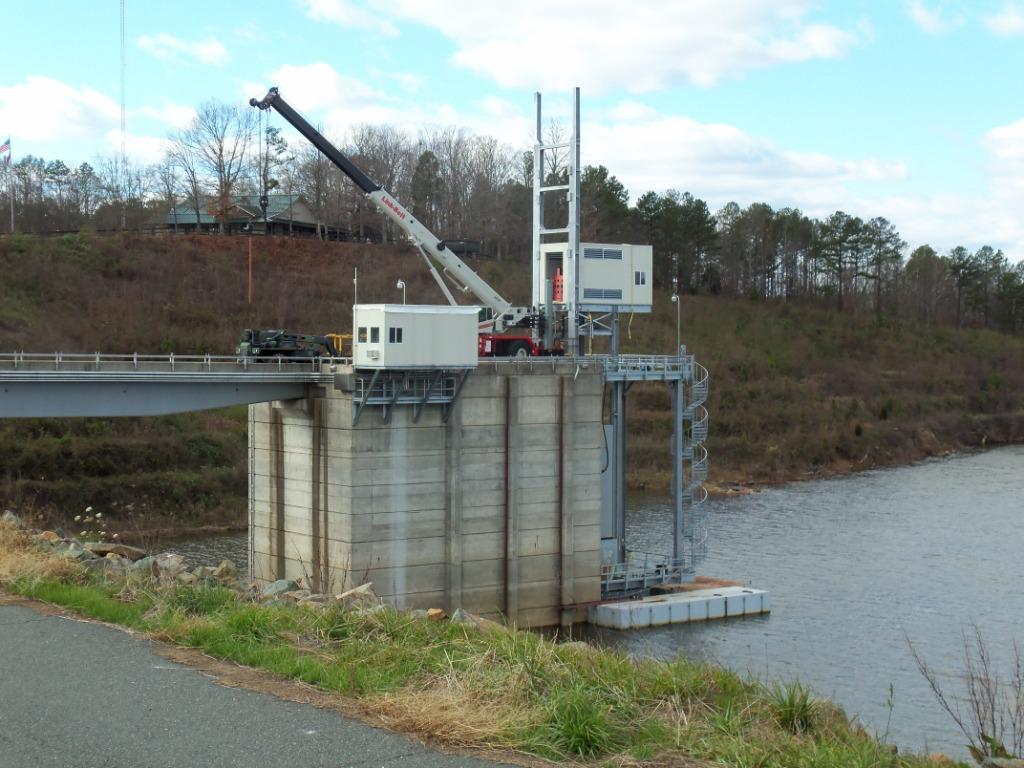

JORDAN HYDROELECTRIC PLANT INSTALLATION WORK WEEKS OF 11-21 / 11-28 2011 |
| 2 UNITS 4.5 MW |
----UNDER CONSTRUCTION----
2- MODULAR KAPLAN TURBINE GENERATOR UNITS
US ARMY CORPS OF ENGINEERS' DAM
---JORDAN DAM INSTALLATION---

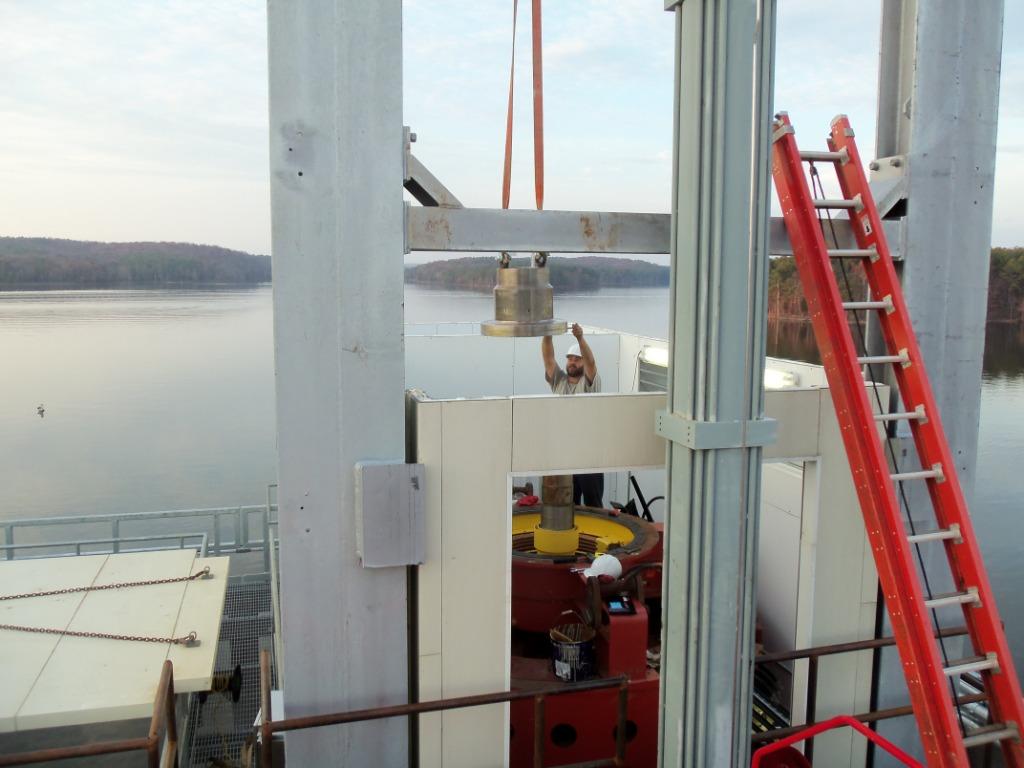

Module 1 East bay generator bearings installation
|
SETTING THRUST SHOE PIVOT BOLTS |

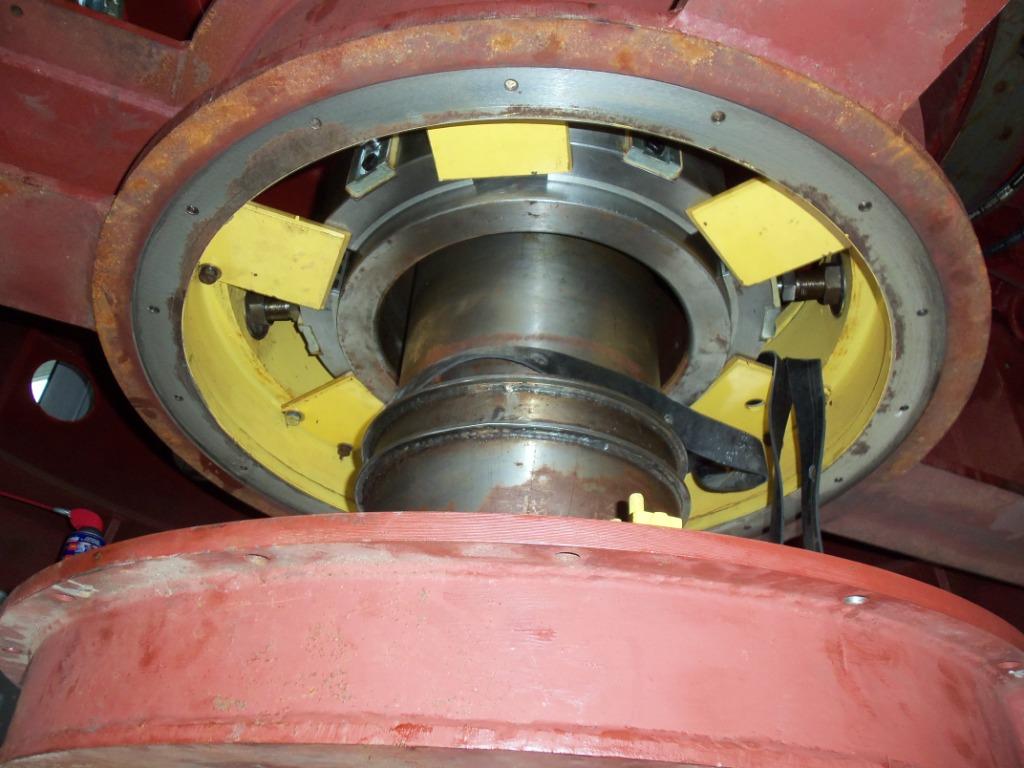

THRUST RUNNER / INSULATING DISK / THRUST RACE |

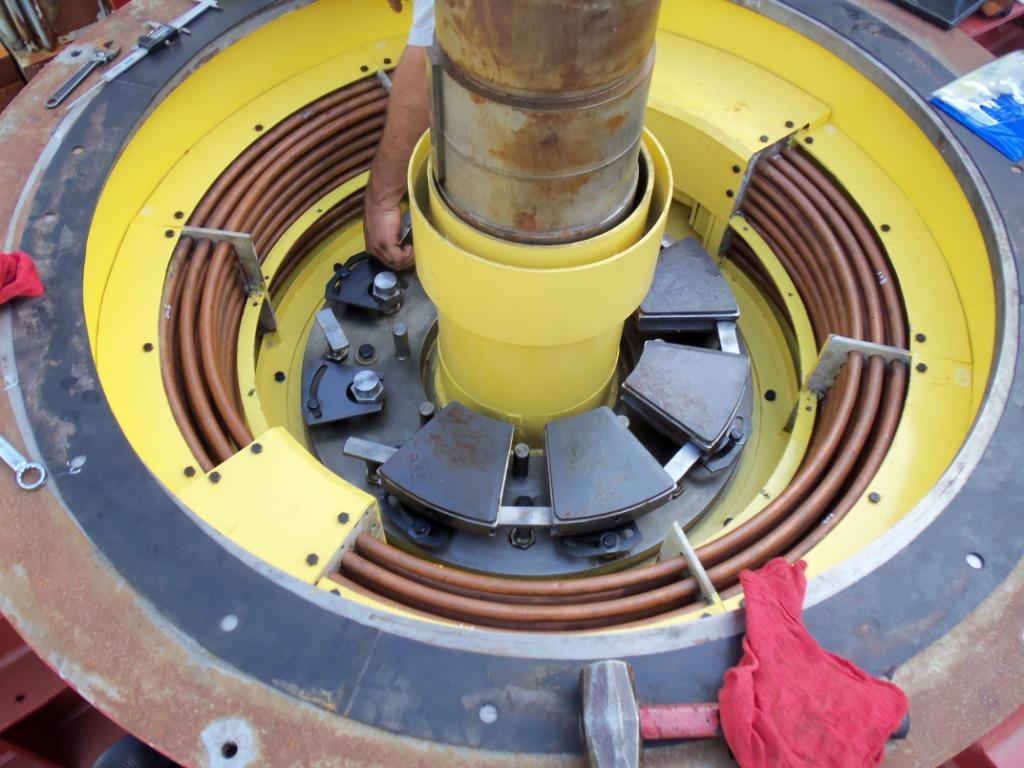

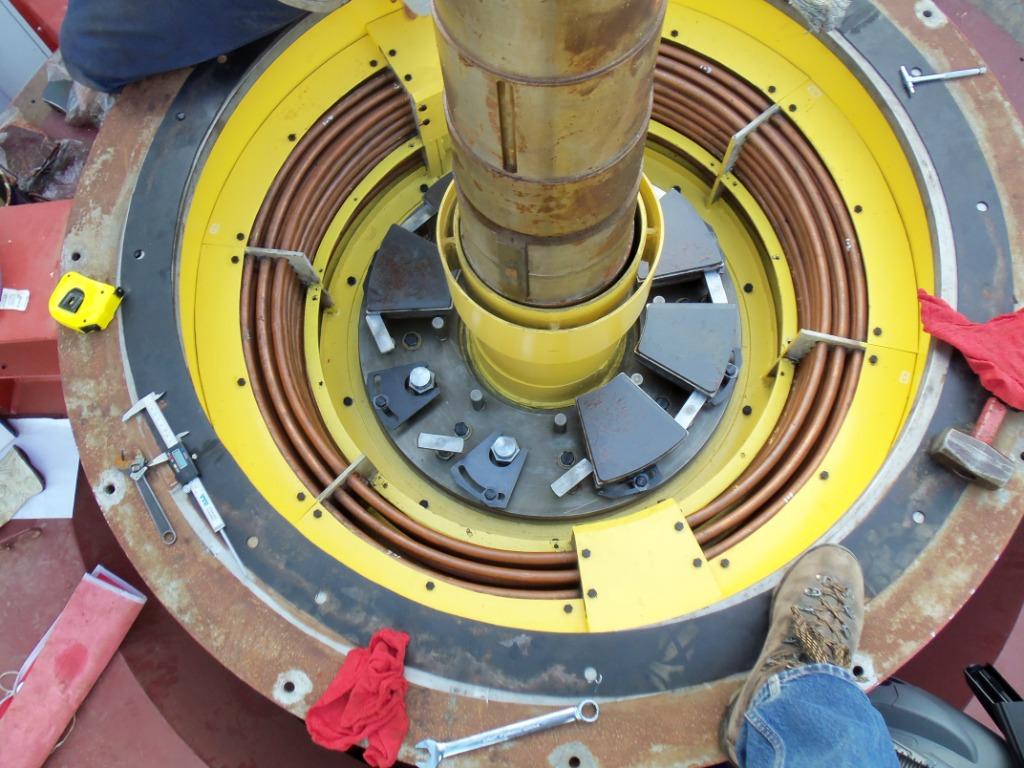

THRUST SHOES / OIL COOILER |
|
|
|

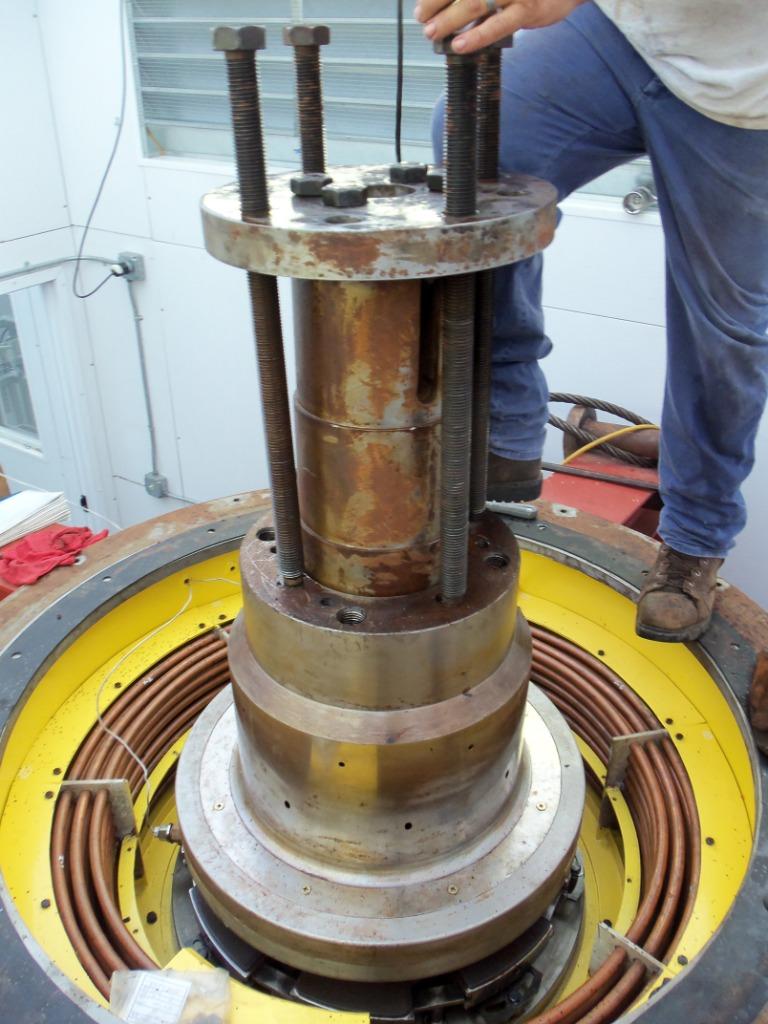

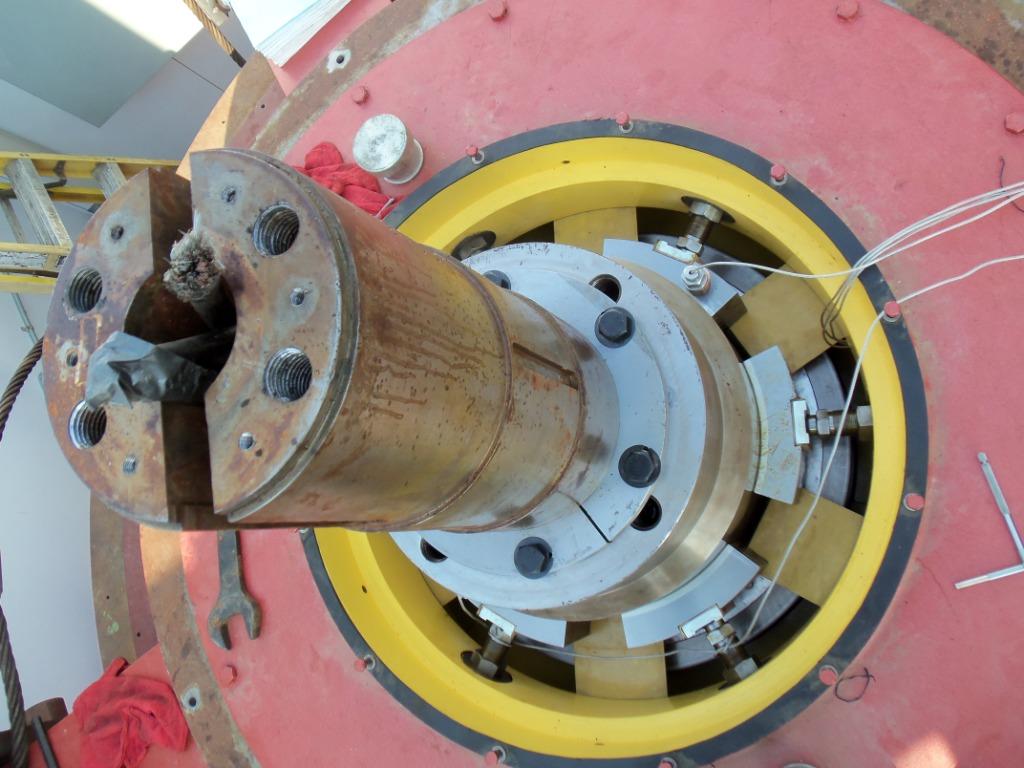

THRUST RUNNER INSTALLATION TOOL |
|
UPPER RADIAL SHOES / RTD TEMP DETECTORS |
|

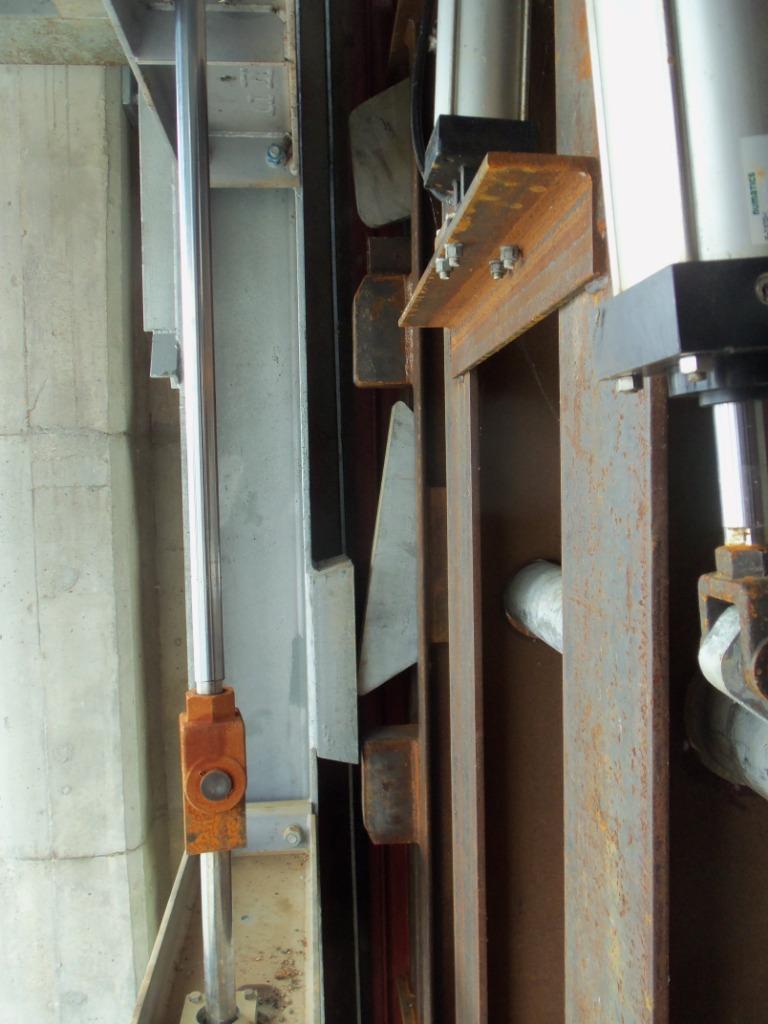

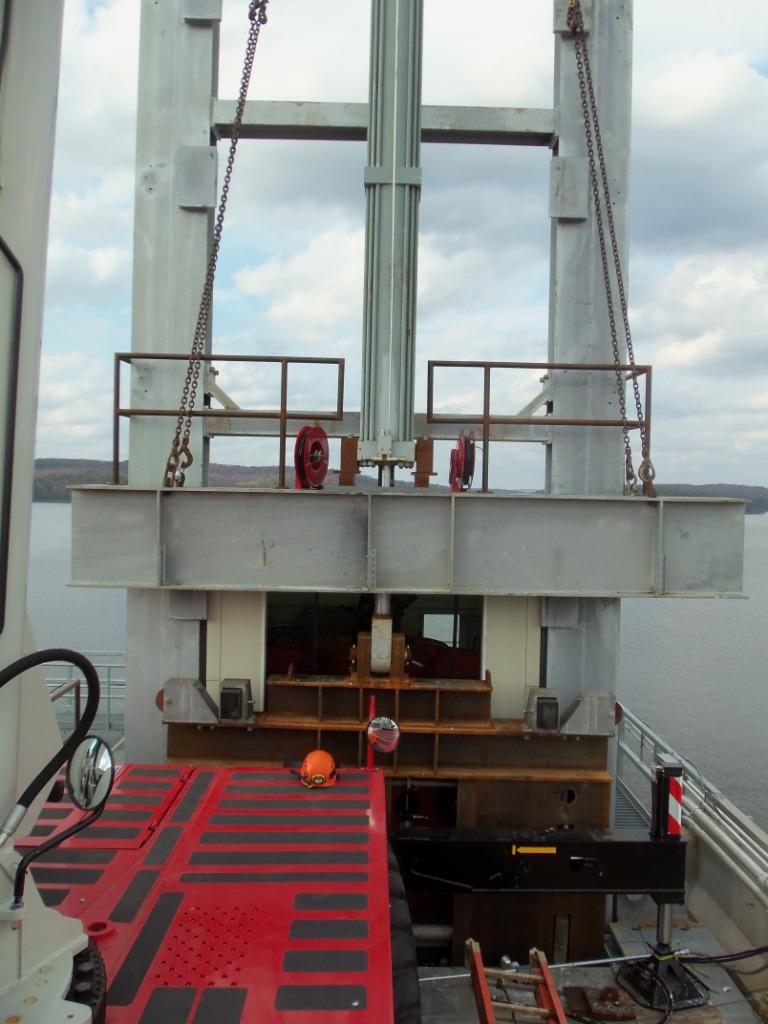

LIFT CYLINDER / BEAM / CARRIAGE LIFT FOR REPAIR |

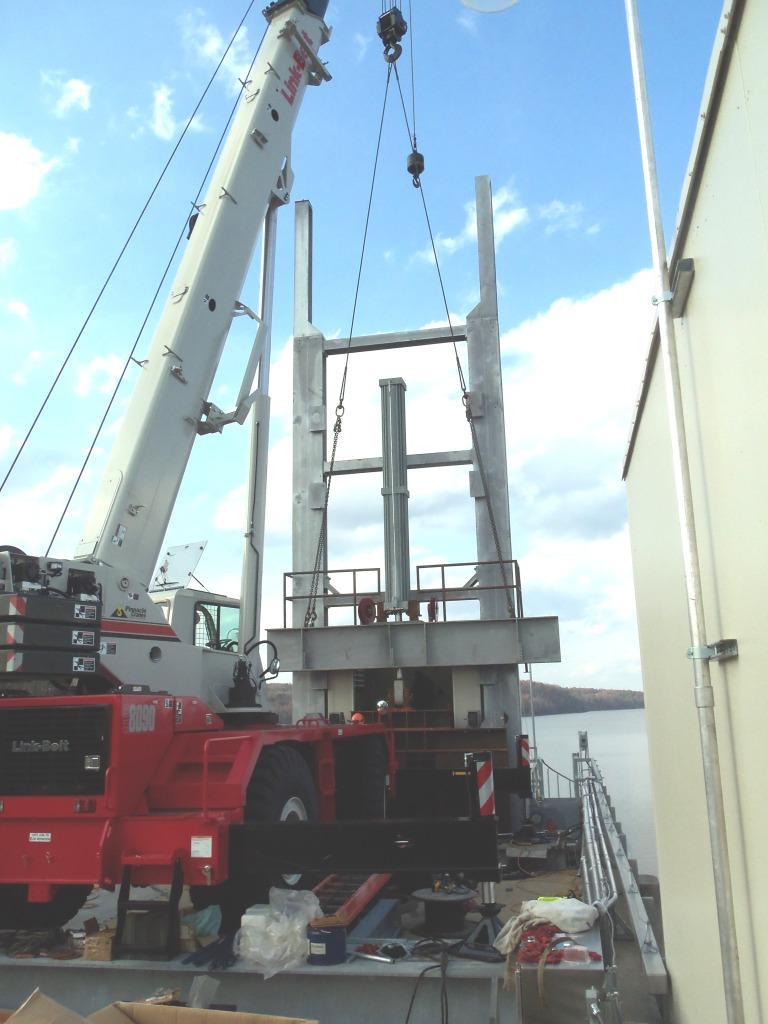

LIFT CARRIAGE / INTAKE LIFT BLOCK |
|

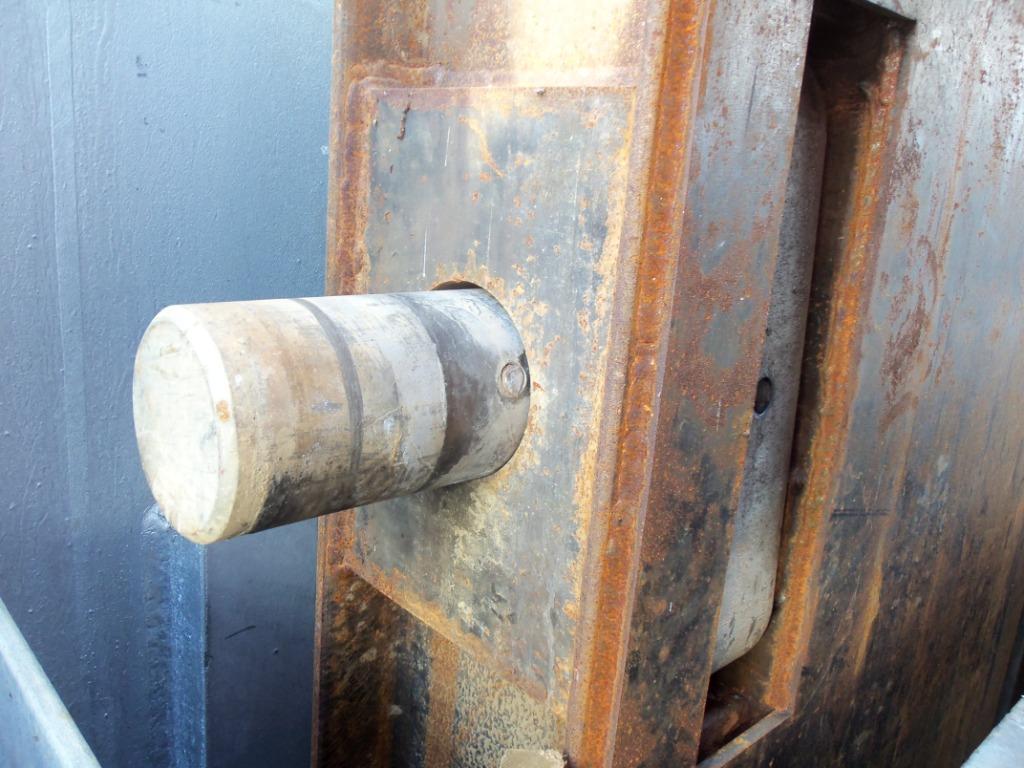

SHEARED LIFT CAM BOLT |
LIFT CARRIAGE / INTAKE LIFT BLOCK |
|
GENERATOR LOWER GUIDE SHOE |

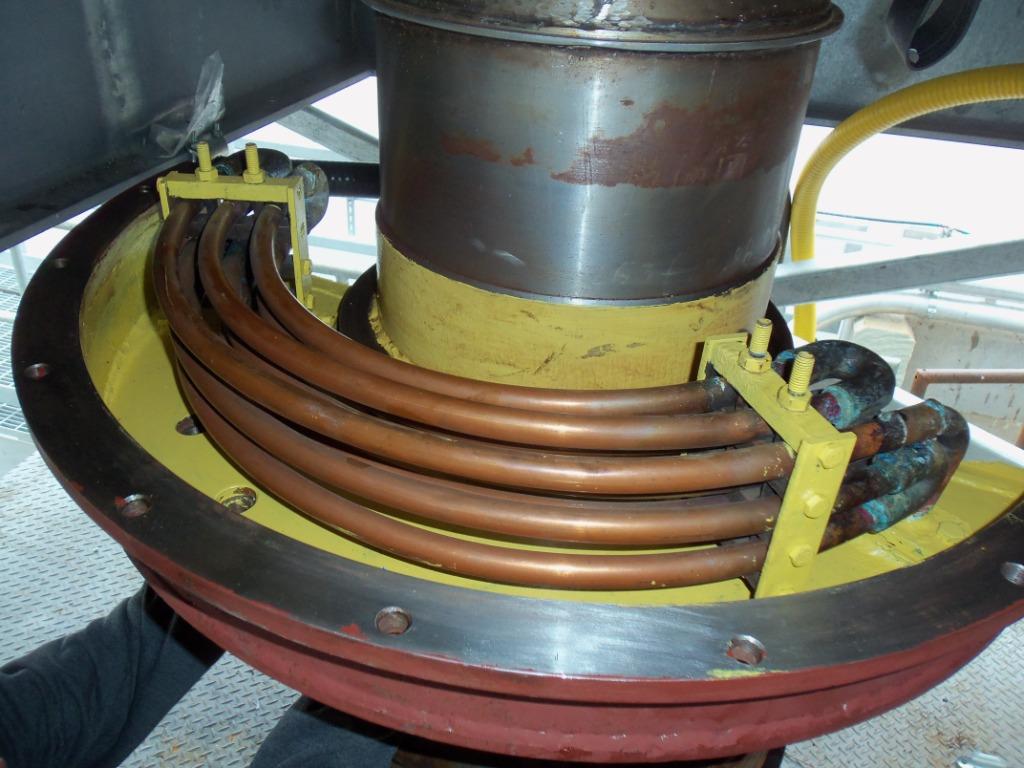

 GENERATOR LOWER OIL COOLER / OIL PAN |
|
|
|
|
|
|
|
|
