TYPICAL DRAGRAKE SPECIFICATIONS

>>HOME<<

SPECIFICATIONS

Rake width 15 to 48 feet

Overhead winch spacing 26 feet

Up/down winch brakemotors / gear drives 5 hp

In/out winch brakemotors / gear drives 3 hp

Up/down winch maximum continuous rated lift 3500 pounds

In/out winch maximum rated pull 2100 pounds

Approximate raking beam weight  1500 pounds

Approximate maximum continuous trash weight  2000 pounds

250% overload rating before stall ( trash weight )   7500 pounds

Approximate cycle time ( 35 feet deep ) 2 minutes

6" x 18" cable spools

1/2" galvanized wire rope

Becket and wedges for cable connections

4 ton 10 diameter snatch blocks



CONTROL PANEL

                       NEMA 4 aluminum control panel

                        Programmable logic controller

                        Reversing motor contactors

                        Magnetic circuit breakers

                        Adjustable motor load relays

                        5 position cycle time delay selector switch

                        8 position joy stick control

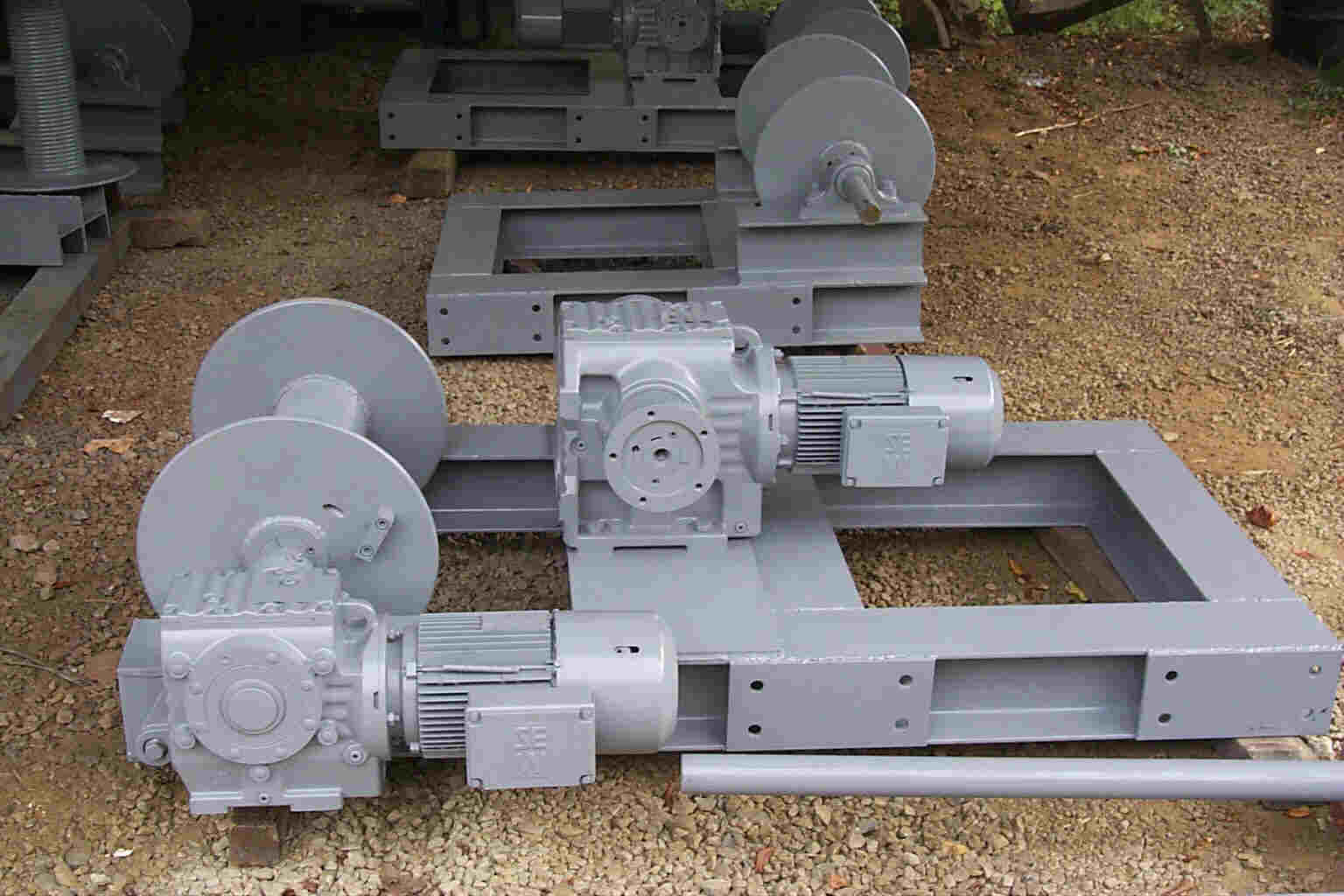

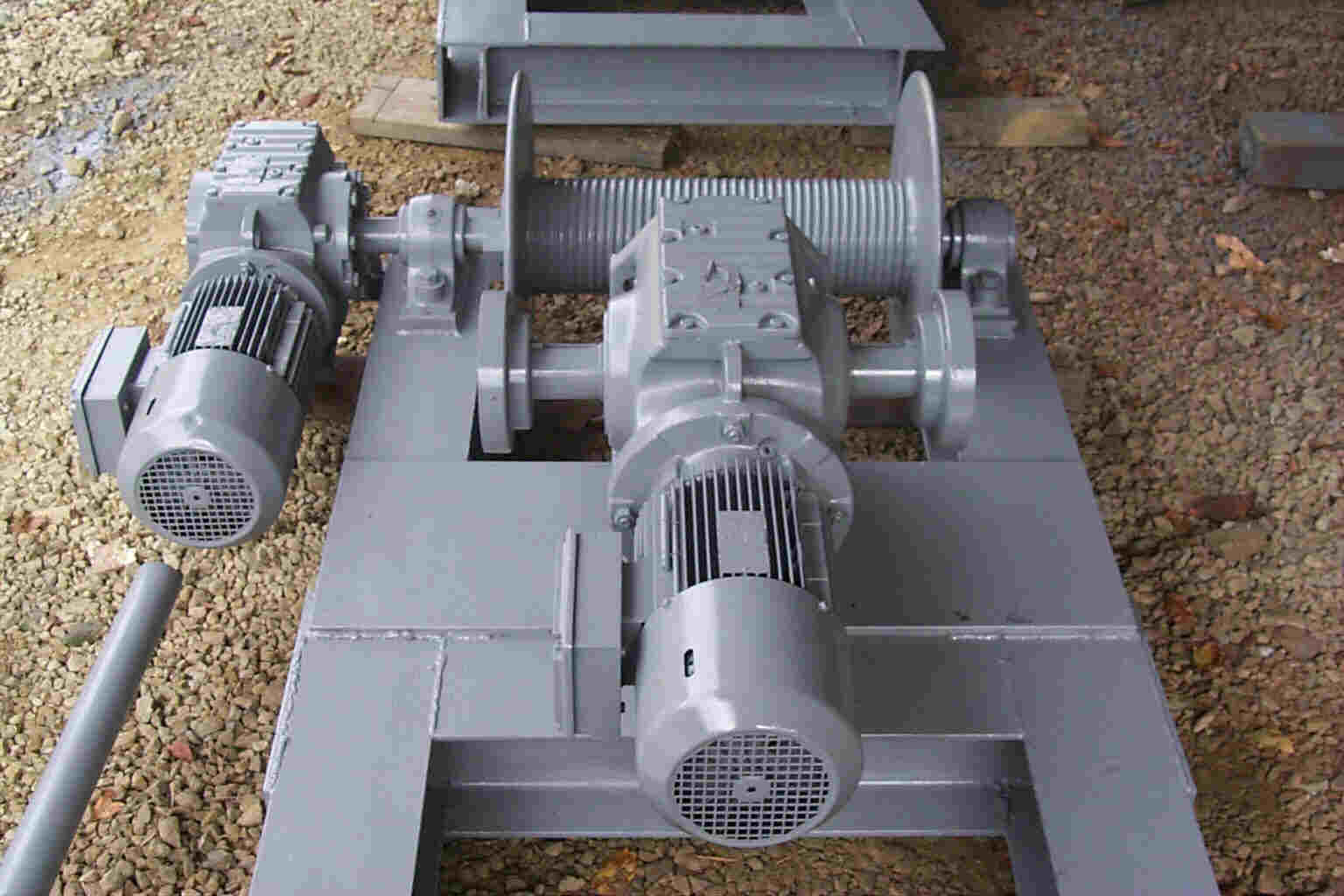

DRIVES

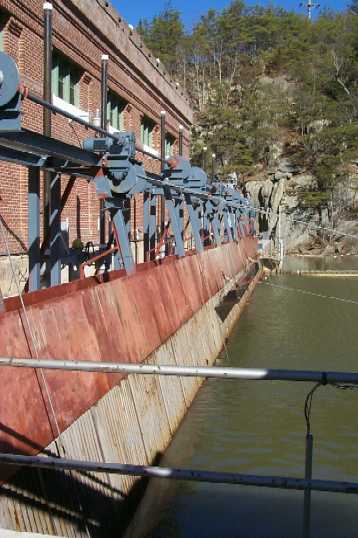

SIDEVIEW

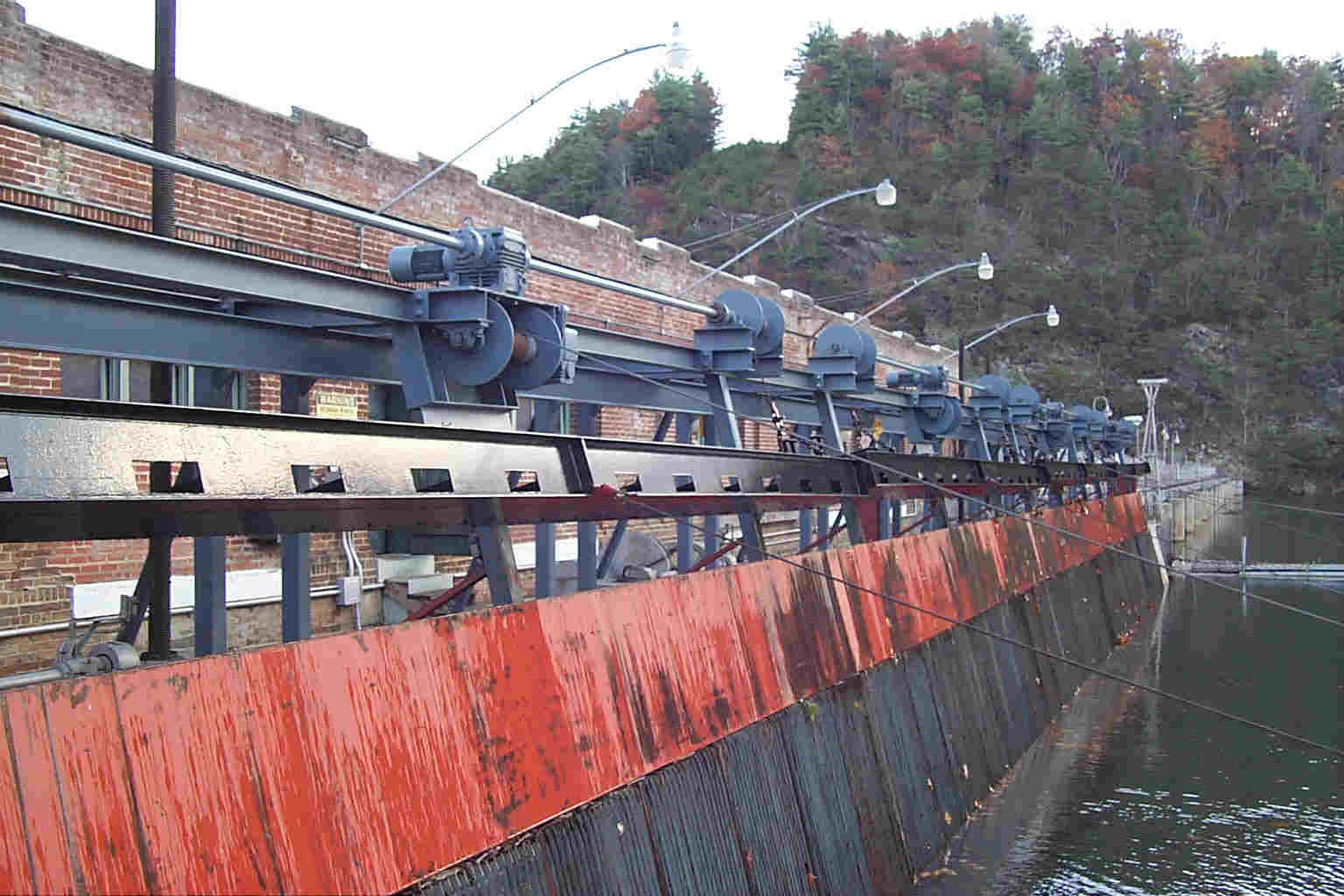

MULTIPLE DRAGRAKES

TYPICAL SUPERSTRUCTURE

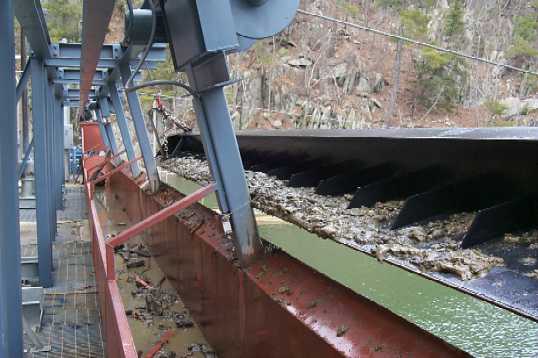

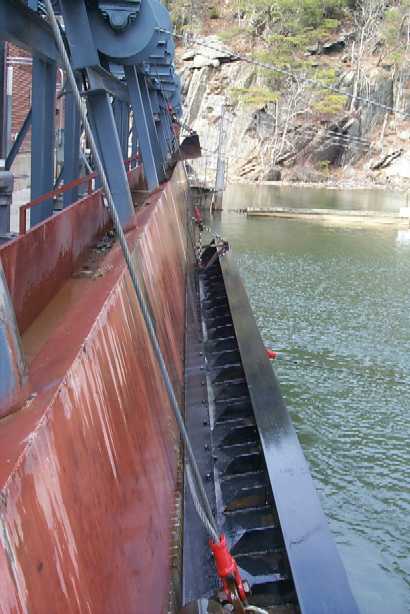

RAKE BEAM

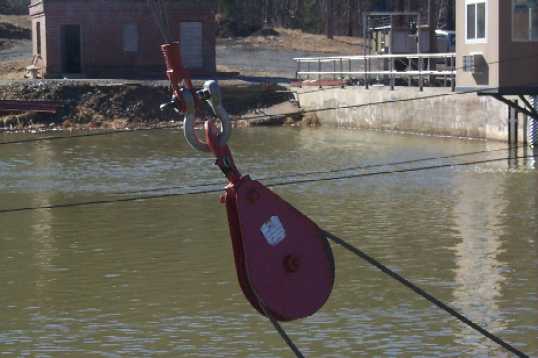

IN / OUT PULLEY

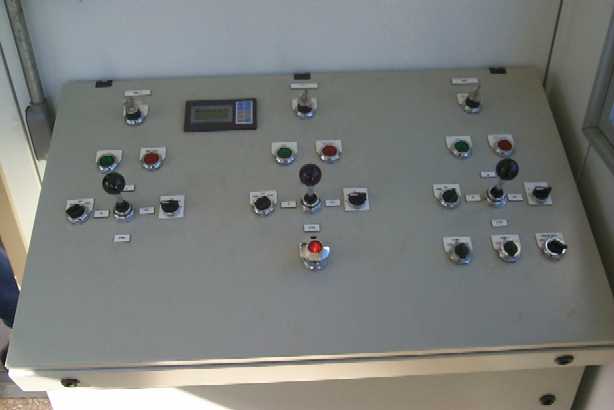

CONSOLE CONTROL PANEL
