TWIN HEADGATE REPLACEMENT FOR SIX  EXISTING WOODEN TIMBER HEADGATE

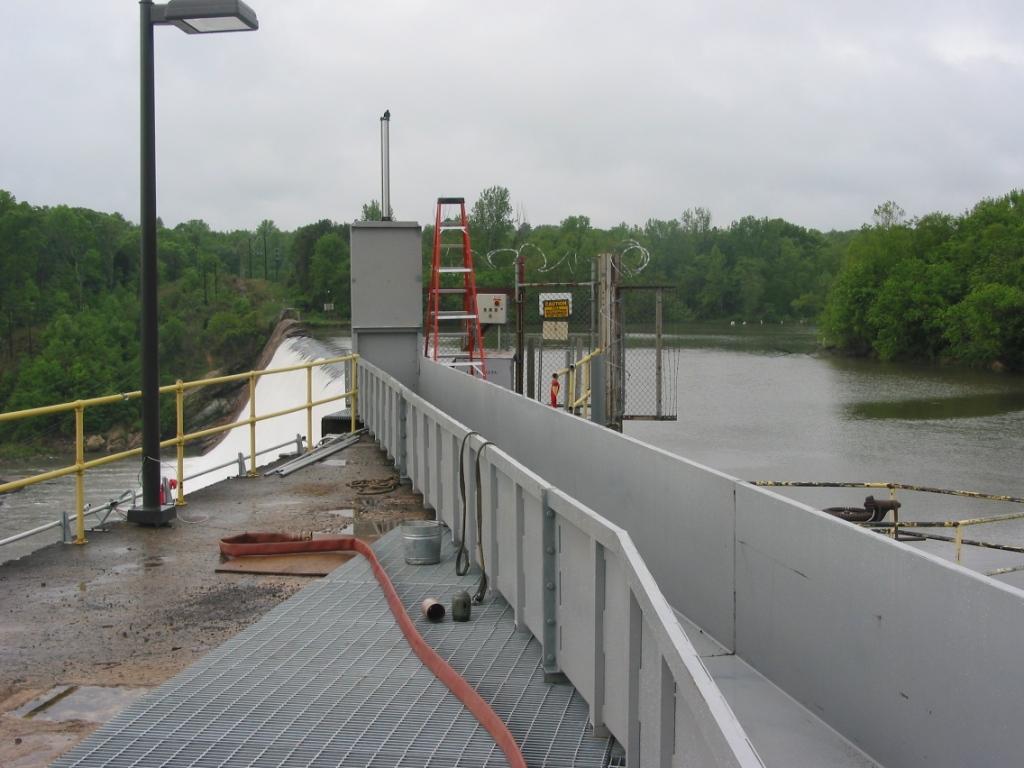

NEW ELEVATED PLATFORM WITH 4 DRAGRAKES AND AUTOMATIC SLUICING TROUGH

99 ISLANDS WAS ORIGINALLY CONSTRUCTED IN 1911. EACH UNIT HAS A 16'8" WIDE X 20' TALL WOODEN TIMBER HEADGATE FOR DEWATERING THE TURBINE. THE EXISTING OPERATING MECHANISMS CONSISTED OF A SERIES OF JACK-SHAFTS, CAST IRON GEAR REDUCTION, AND RACK AND PINION LIFTING BEAMS.

DUKE POWER CONTRACTED WITH NORTH FORK ELECTRIC INC. TO DESIGN AND BUILD A UNIQUE SELF-SUPPORTING TWIN HEADGATE REPLACEMENT.  AFTER THE FIRST HEADGATE INSTALLATION IN LATE 2004 dUKE CONTRACTED WITH NORTH FORK ELECTRIC INC. TO SUPPLY 5 ADDITIONAL REPLACEMENT GATES, 4 DRAGRAKE SYSTEMS, AND AUTOMATIC SLUICING TROUGH.

THE REPLACEMENT DESIGN IS OF MODULAR DESIGN FOR EASE OF SHIPPING AND ASSEMBLY. ALL STEEL IS FULLY HOT DIPPED GALVANIZED AND EACH GATE HAS CONTINUOUS RUBBER "J" SEALS . EACH GATE HAS A 50 TON RATED SCREW-JACK AND IS CAPABLE OF CLOSING UNDER FULL DIFFERENTIAL.

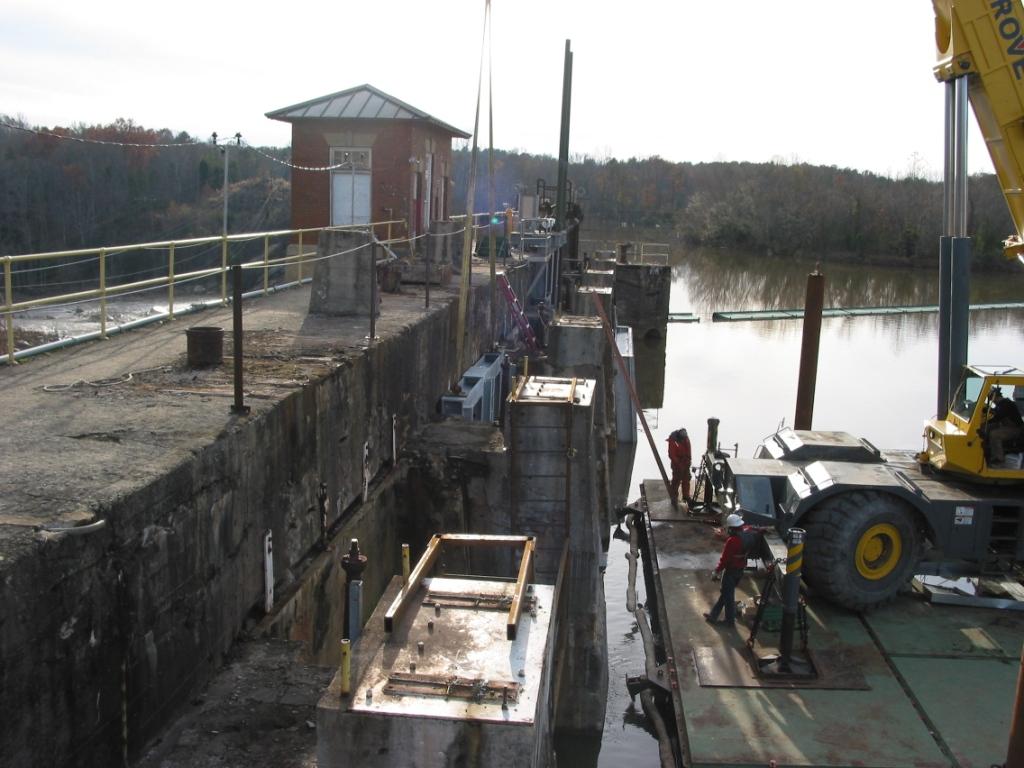

#2 HEADGATE INSTALLATION

HEADGATE SCREW-JACK ASSEMBLY

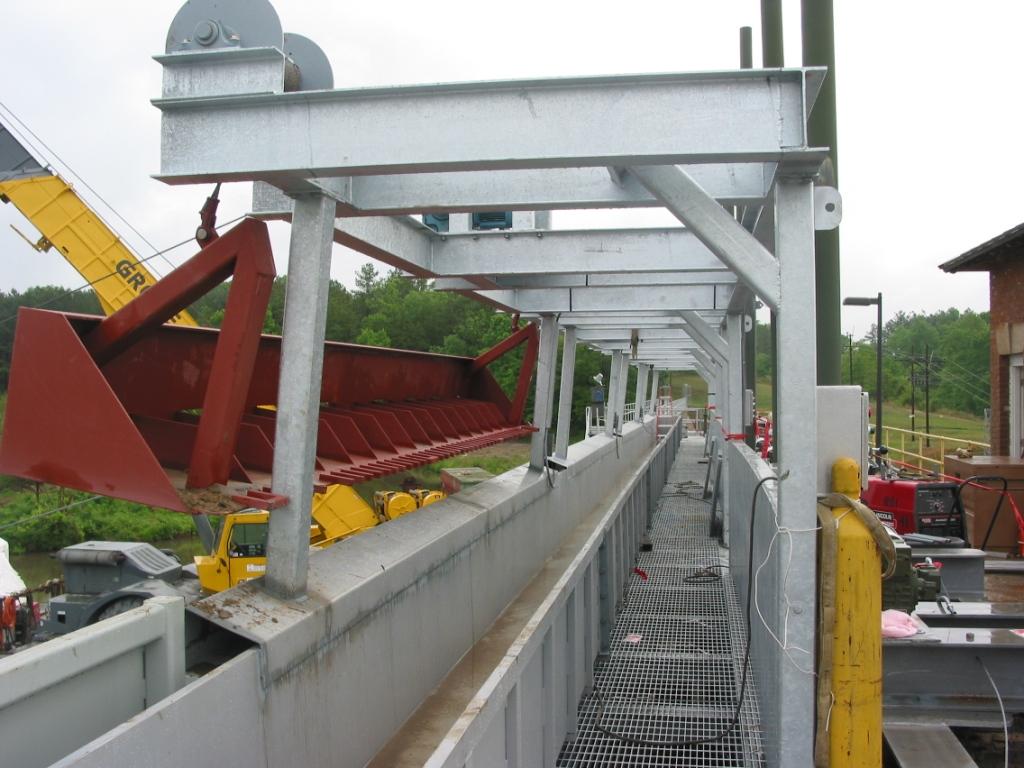

DRAGRAKE ASSEMBLY

TROUGH GATE AIR CYLINDER

TRANSITION PLATES

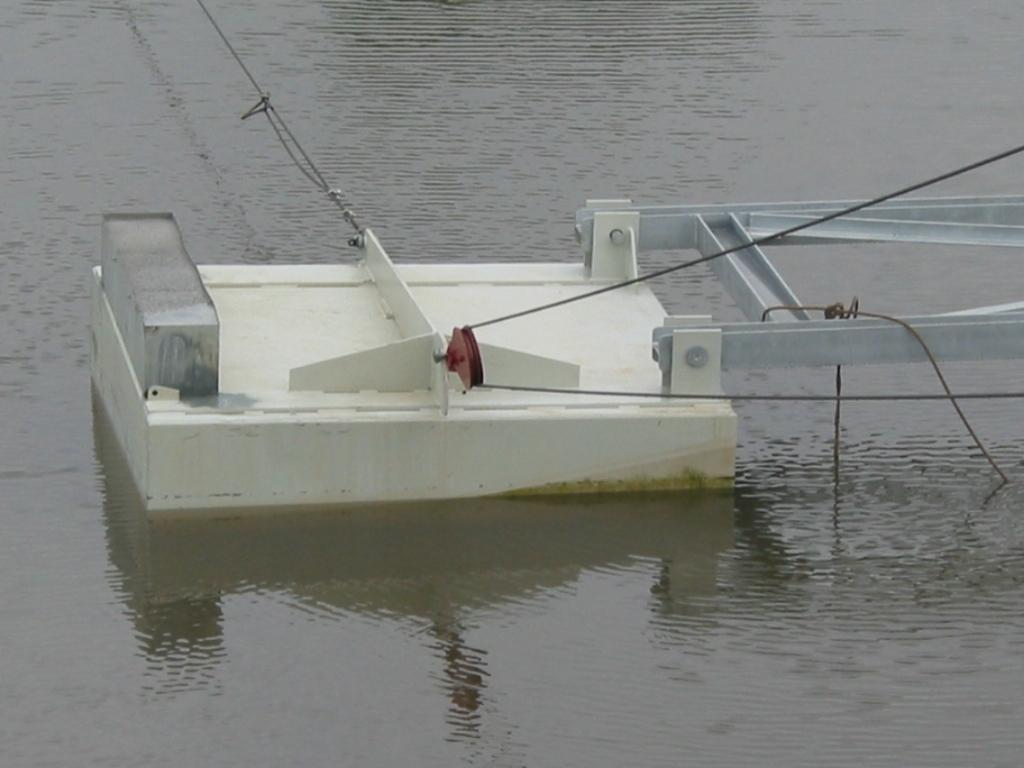

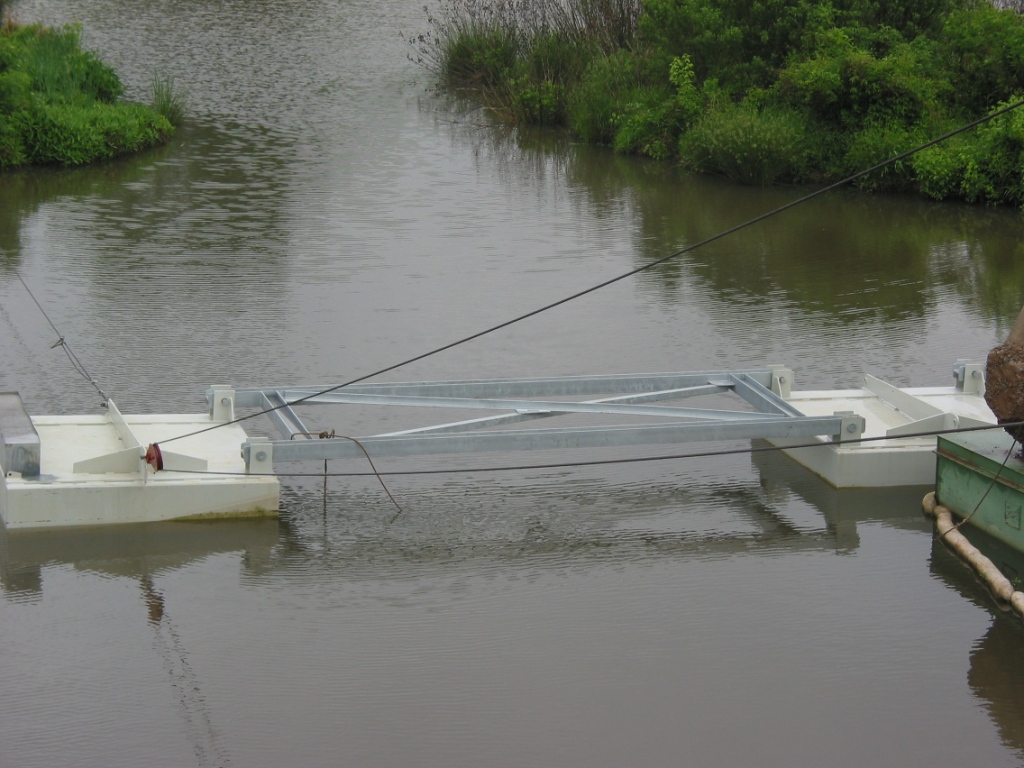

IN/OUT FLOATS

IN/OUT FLOATS

FRAME CLAMP BARS

NEW TRASHRACK

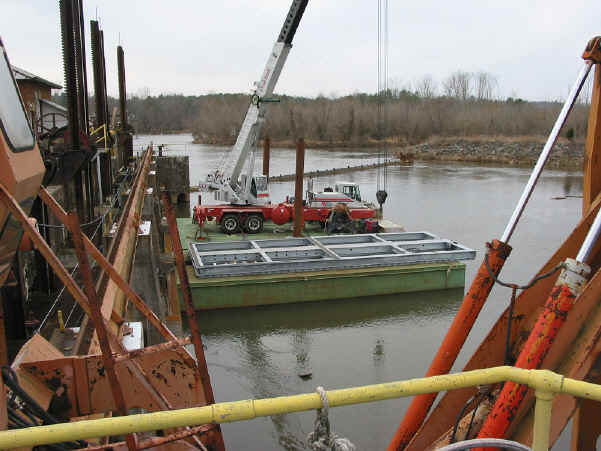

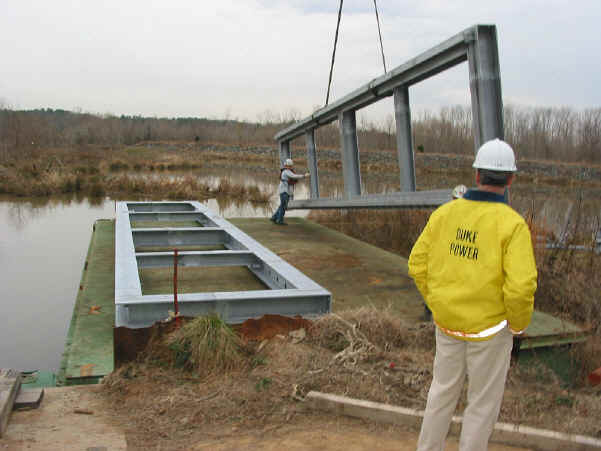

FRAME INSTALLATION

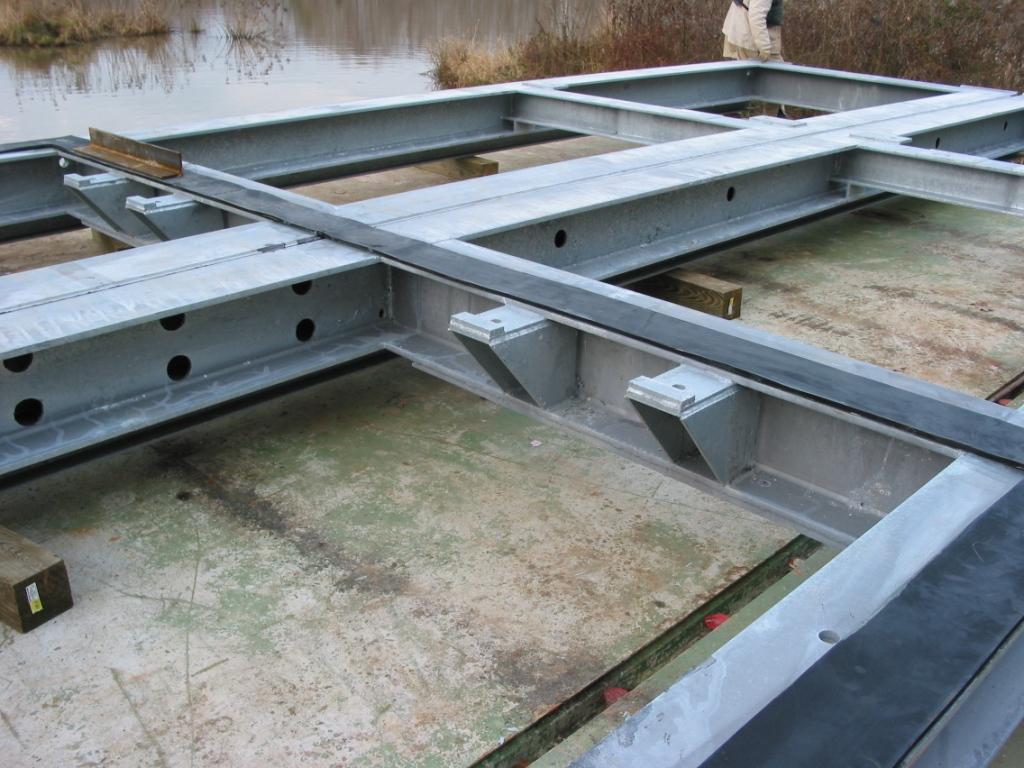

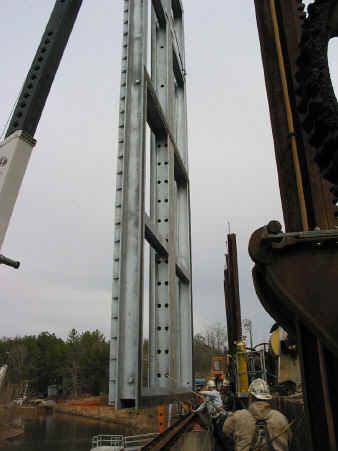

FRAME ASSEMBLY

DOWN STREAM VIEW

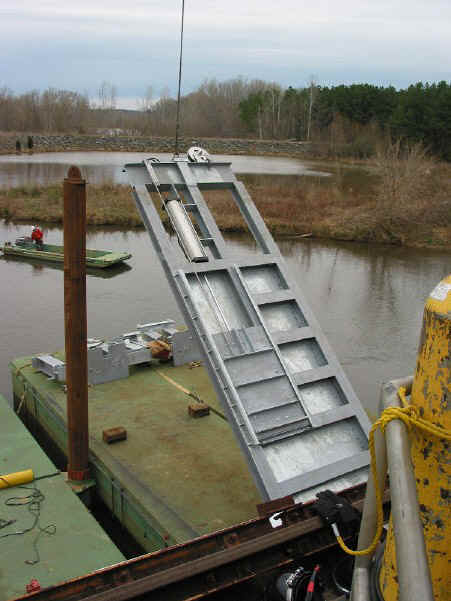

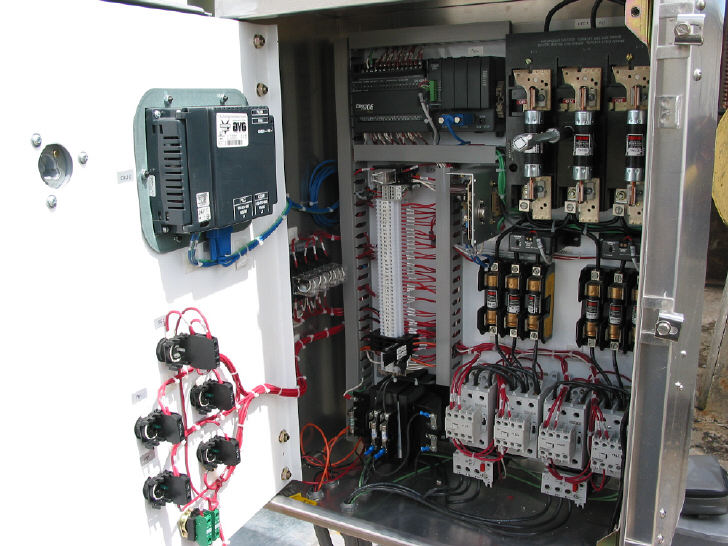

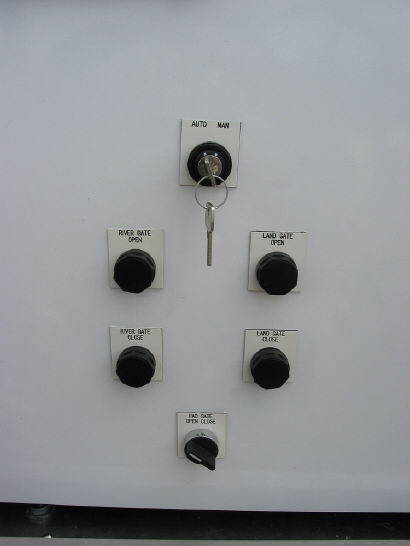

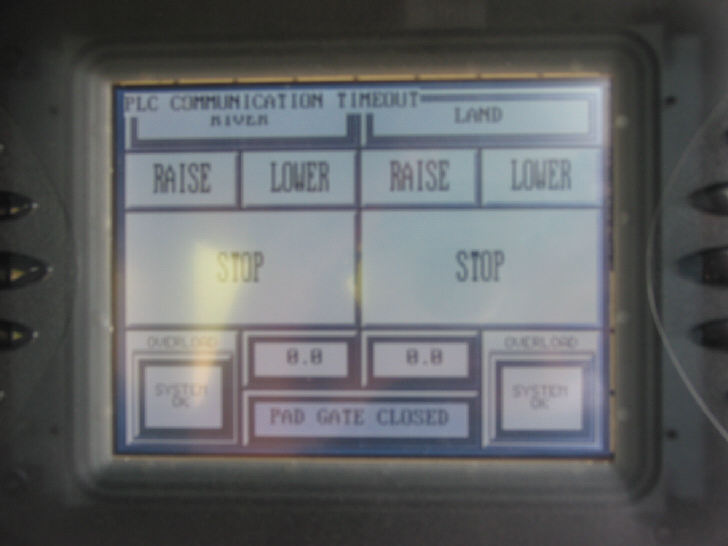

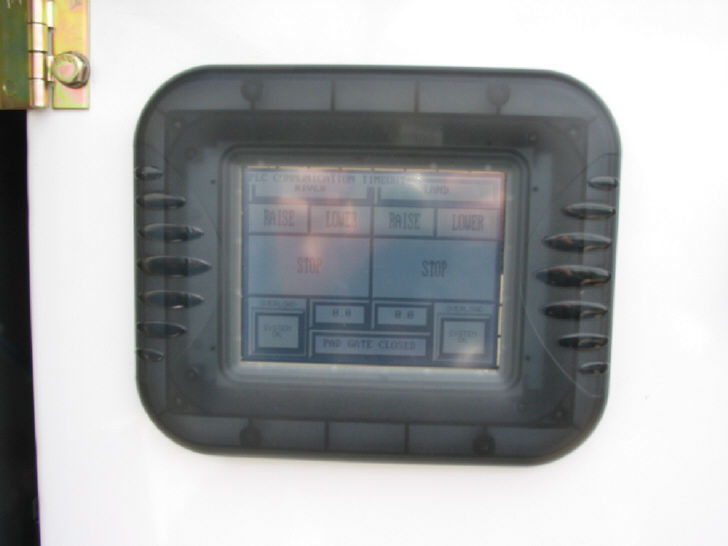

RIVER GATE WITH PNEUMATIC EQUALIZING GATE

SEE FABRICATION DETAILS
